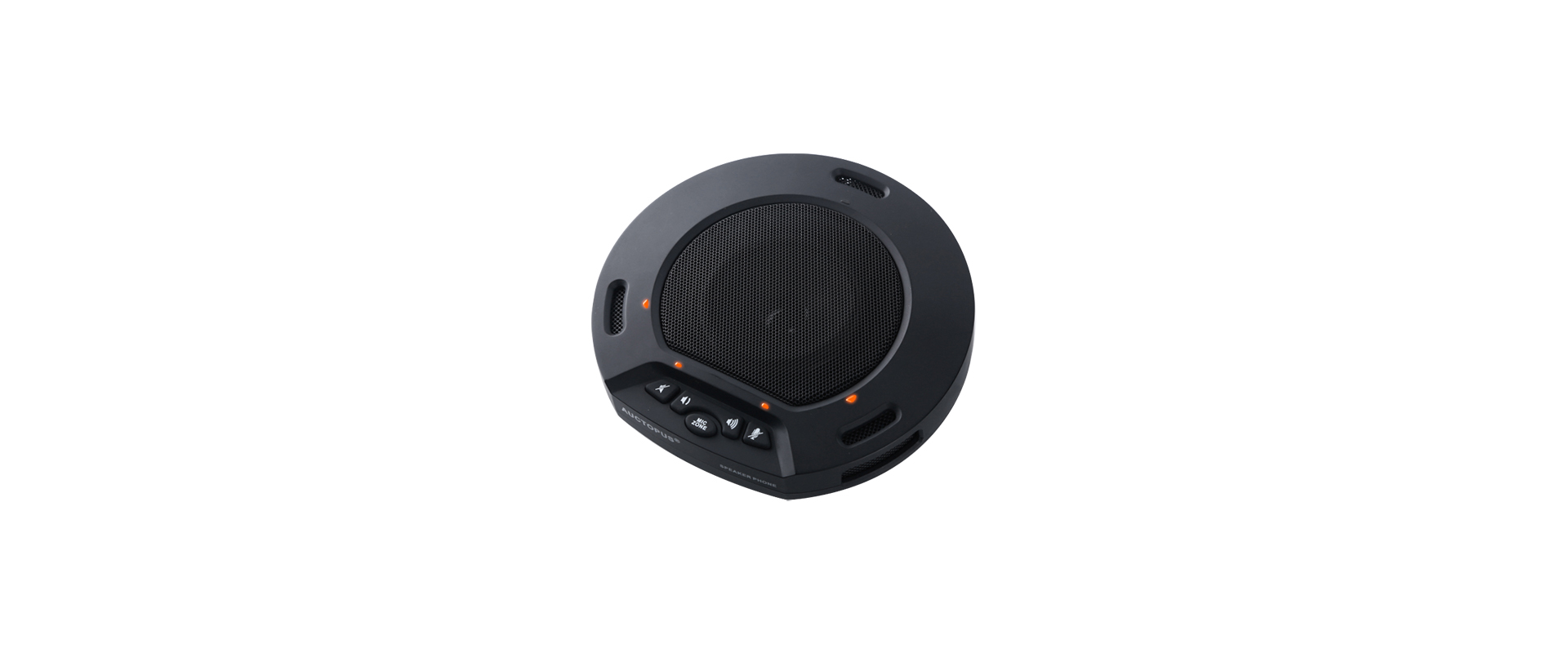

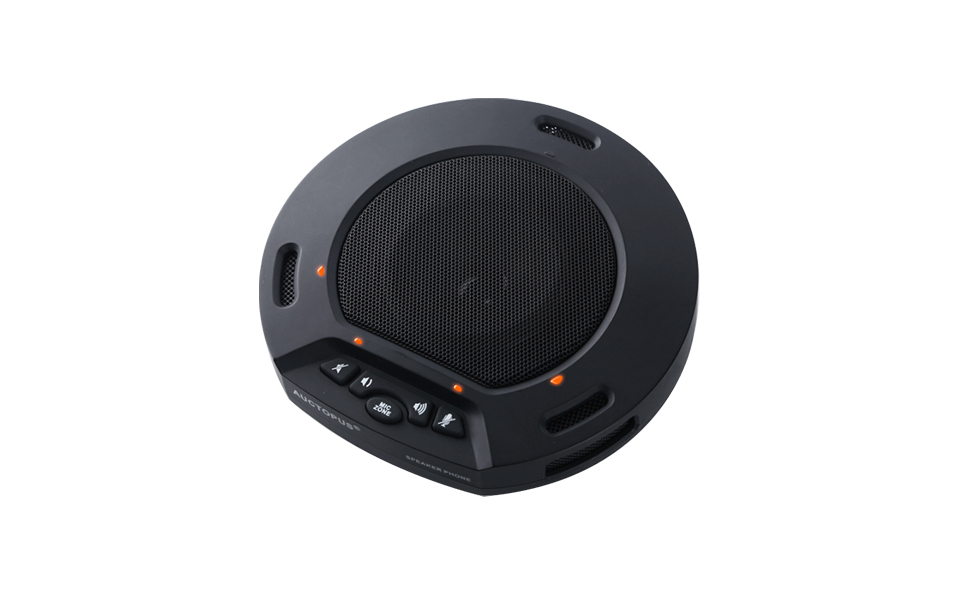

Cleartalk Wired ASP-05

Features and scenarios

  • Personal Privacy

    The 3.5mm audio output jack allows for private communication, as well as a broader range of audio output options.

  • High Tech Audio

    360 degree coverage, a 3 meter pickup range, 256ms echo cancellation, and dynamic noise reduction audio processing technology make the Cleartalk Wired ASP-05 a high tech powerhouse of audio communication.

  • Perfect Full Duplex Communication

    Simultaneous two-way communication channels makes your conversation flow smoothly and naturally.

  • Elegance and Portability

    With a sleek, compact design, simple USB 2.0 cable built-in, and no extra software or drivers required, the Cleartalk Wired ASP-05 is the perfect plug and play device.

Cleartalk Wired ASP-05-0
Cleartalk Wired ASP-05-0
Cleartalk Wired ASP-05-0
Cleartalk Wired ASP-05-0
Cleartalk Wired ASP-05
  • Model
  • ASP-05
  • Architecture
  • Tabletop console contains audio processing functions, USB function, indicator and key function
    · double speakerphone
    Built-in lithium battery (7-10h)
    · 1.5m USB power line
    USB charging plug
  • Size
  • 155mm*148mm*37mm
  • Weight
  • 340g (single speakerphone)
  • Color
  • Black
  • Network interface
  • USB 2.0 (compatible with USB 1.1)
    3.5mm audio output jack
  • Microphone
  • Cardioid microphones 20-8000Hz
  • Loudspeaker
  • 3.94-inch anti-magnetic speaker
  • Power
  • USB supply (DC 5V / 500mA)
    Built-in lithium battery
  • Recommended conditions
  • Temperature:5° to 44°
    Humidity:20~85% condensation-free
    · Noise level:<48db
    Storage temperature:-10° to 55°
    · Reverberation time: <0.5 seconds
  • Audio
  • Digital audio processing
    256ms echo cancellation
    · Dynamic noise reduction
    Full duplex communication
    360 degree by 3 meter pick-up range
  • System Compatibility
  • Windows 8/Windows 7/ Windows 10/ Windows XP, etc; Mac 10.7 and above
  • Functionality
  • Supports most computer software audio applications
    Skype, MS Teams, Zoom, etc.
    microphone mute
    loudspeaker mute
    volume up/down
    indicator light
  • Certification
  • Product execution standard
  • · YD/T 993-1998
    · GB/T 9254-2008
    · GB 4843.1-2011
  • Keypad
  • Microphone mute key
    Loudspeaker mute key
    · Volume up/down keys
    Standby key
  • Indicator LED
  • Triangle indicator on: working
    Left indicator on: speaker mute
    Right indicator on: Microphone mute
    · Left indicator flashing: volume adjusting
    · Right indicator showing orange: full charge
  • Warranty
  • 3 year main device warranty
    1 year battery guarantee
