Saber U20

Features and scenarios

  • 20x Optical + 12x Digital Zoom

    20x Optical + 12x Digital zoom gets you up close and personal. Even in the largest event spaces, the Saber U20's zoom features will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

  • 1080p @ 60fps

    The Saber U20 runs video at up to 1080p Full HD at 60 frames per second. This smooth, high resolution video can run through both HDMI and USB-C (USB2.0) connections simultaneously, giving your livestreaming or recorded video excellent definition, superb image quality, and much needed flexibility.

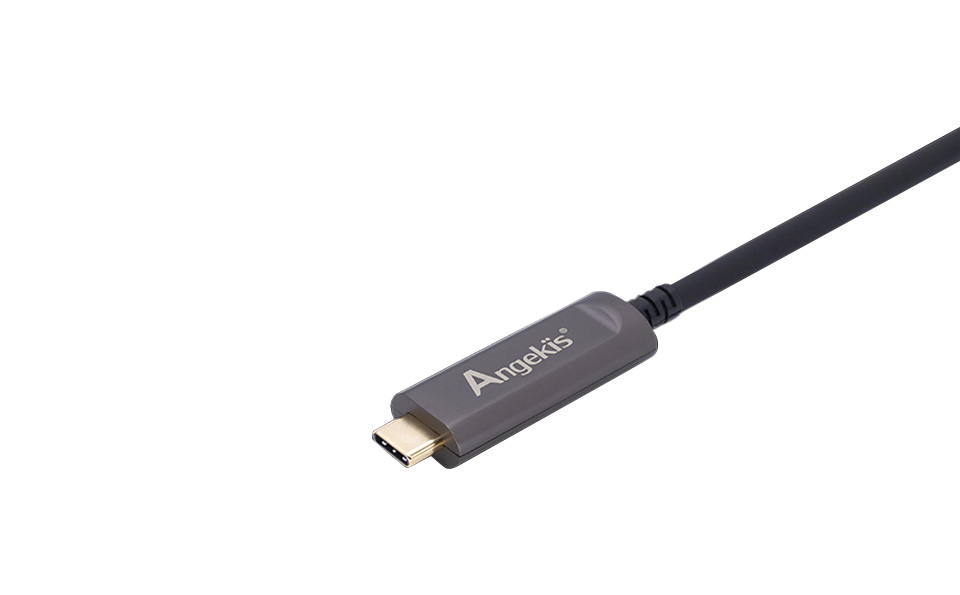

  • Power over USB

    The Saber U20 comes with a USB-C port (running USB 2.0) through which you can run power, video, and control. One plug to rule them all.

Saber U20-0
Saber U20-0
Saber U20-0
Saber U20
  • Model
  • Saber U20 (ANG2-20FHD-01)
  • Sensor
  • 1/2.8 inch 2.1MP CMOS sensor
  • Video Formats
  • HDMI (v1.4): 1920*1080P60/59.94/50/30/29.97/25/24; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25

    USB-C: MJPG: 1920*1080P60; 1280*960P60; 1280*720P60;1024*768P60; 800*600P60; 640*480P30; 320*240P60
    YUY2:640*480P30;320*240P30
  • Zoom
  • 20x optical zoom & 12x digital zoom
  • FOV
  • 60° (diagonal)
  • F/number
  • Wide: F/1.5 (Wide)~3.0(Tele)
  • Focal Length
  • f=4.9mm (near)~98mm (far)
  • Presets
  • 10 via remote controller; 128 via serial port; preset precision: 0.1°
  • Rotation Angle
  • Pan: -170° ~ +170°;   Tilt: -30° ~ +90°
  • Rotation Speed
  • Pan: 0°~120°/s ;         Tilt: 0°~80°/s
  • Control Port
  • RS-232 In, USB-C (USB2.0)
  • Video Port
  • HDMI and USB-C (USB 2.0)
  • Noise Reduction
  • 2D & 3D
  • SNR
  • >50dB
  • Minimum Lux
  • 0.01 lux
  • White Balance
  • Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
  • Anti Flicker
  • 50Hz/60Hz/OFF
  • D/N Mode
  • Supported
  • Gamma
  • Supported
  • Mirror Image
  • Supported
  • PanTilt Flip
  • Supported
  • Iris
  • Auto / Manual
  • Electric Shutter
  • Auto / Manual
  • BLC
  • Auto / Manual
  • Focus
  • Auto / Manual
  • Video Encoding
  • MJPG, YUY2
  • Frames
  • 50HZ: 1fps~50fps  60HZ:1fps~60fps
  • Input Voltage
  • DC12V, 2A
  • Dimension
  • 220mm×173mm×190mm
  • Net Weight
  • 1.47 KG
  • Power over USB
  • Supported
