Saber Light

Features and scenarios

  • 5x Optical+ 2x Digital Zoom

    5x Optical + 2x Digital zoom gets you up close and personal. With both manual and auto focus options you can seamlessly pivot between focal points. Catch every detail with Angekis' lossless zoom technology.

  • Powered by USB 3.0

    One plug to rule them all. A single USB 3.0 cable provides video, control, and power, making setup clean, fast, and simple. A perfect match for a minimalist office manager.

  • Capture Every Angle

    Using the Angekis IR Remote Control that comes with the Saber Light, you can set up to 10 preset camera angles for smart, rapid view switching. Not enough? Using a controller plugged into the RS232 port, you can set up to 128 presets!

Saber Light-0
Saber Light-0
Saber Light-0
Saber Light
  • Mode
  • U3-5FHD6
  • Video Formats
  • USB 3.0 : 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1024x576 @ 30fps, 960x540 @ 30fps, 640x360 @ 30fps, 352x288 @ 30fps
    USB 2.0 (YUY2): 1024x576@30, 960x540@30, 640x360@30, 352x288@30

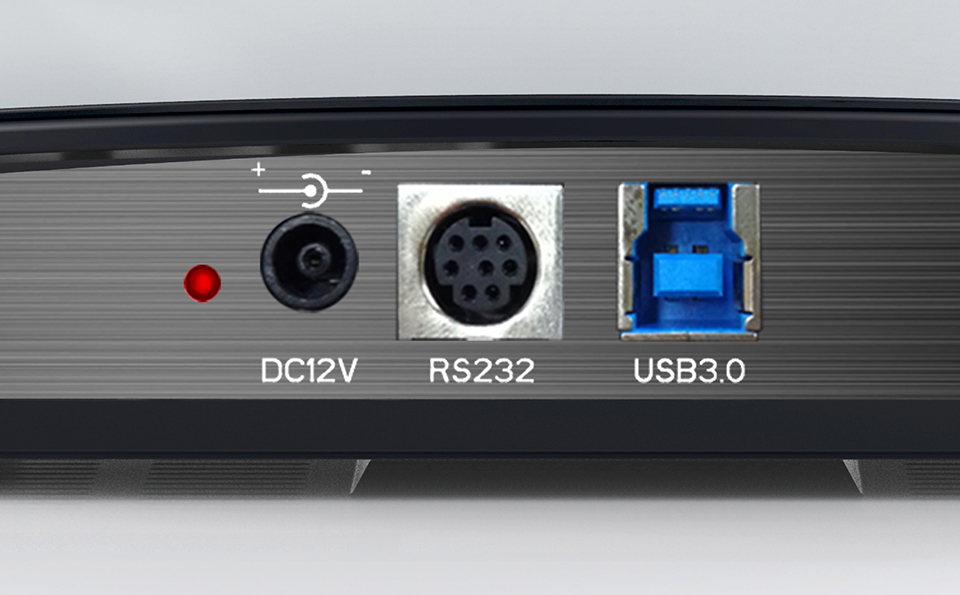

  • Connectivity
  • DC12V/2.0A, Power port: HEC3800, VISCA In RS232, USB3.0
  • HFOV
  • 90°
  • Pan/tilt Rotation
  • Pan:±170°; Tilt:-30°~+90°
  • Pan/tilt Speed
  • Pan: 0.1°-120°/s; Tilt: 0.1°-80°/s
  • Preset
  • 10 via IR remote setting
  • Control
  • RS232, RS485 (Serial VISCA, Pelco-P/D), USB3.0(UVC1.5), USB2.0(UVC1.1)
  • Min. Lux
  • 0.01 Lux
  • Mount
  • Camera mount for wall and ceiling (optional for purchase)
    Reverse mountable, standard tripod screw on bottom of unit
  • System Requirements
  • Windows® 7/ 8/8.1/10
    Mac OS® X 10.7 or higher
    Google Chrome book version 29.0.1547.70, platform 4319.79.0
  • Power Supply
  • Input Voltage: 5V 1000Ma (USB3.0) / 12VDC 1A (Power Adapter)
  • Environmental Data
  • Working temperature: -5 - 45°C
    Storage temperature: -20 - 60°C
  • Dimensions
  • Package Dimensions: 310 x 265 x280 mm
    Net Weight: 1.28kg
  • Warranty
  • Camera: 3 Years
  • Certified and Tested Compatible Applications
  • Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangout, GoToMeeting, Intel® UniteTM, Microsoft® LyncTM, SkypeTM, Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit
  • Sensor
  • 1/2.8 inch 2.1MP CMOS Sensor
  • Net Weight
  • 1.47 KG
