Saber IP20X

Features and scenarios

  • 20x Optical + 2x Digital Zoom

    20x Optical + 2x Digital zoom gets you closer to your partners than you’ve ever imagined. Even in the largest conference rooms, the Saber IP20X’s zoom features will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

  • Command and Control

    The Saber IP20X's precision control technologies give you the power to capture exactly what you need. Whether you stick with the factory presets and rely on the Saber IP20X's excellent automated services, or want to take manual control over every detail, the Saber IP20X is ready. With an IR remote included in the box, an Angekis NECC controller app available on our website, RS232, and USB 3.0 ports, as well as support for RS485, RJ45, and more, you can count on meticulous control over your video and audio.

  • IP Live Streaming

    Show the world! Designed specifically for IP livestreaming and internet connectivity, the Saber IP20X is the ultimate machine for broadcasting over YouTube, Facebook Live, Twitch, or anywhere else your audience may be.

  • Multi Camera Control

    The Saber IP20X was designed with professional video production in mind. Advanced integration capabilities, including RS232 In/Out ports allow you to control up to 7 cameras simultaneously.

  • Full High Definition

    Utilizing advanced sensors and a multi-lens camera setup, the Saber IP20X delivers crystal clear, Full HD resolution. In person meetings will feel pixelated by comparison.

Saber IP20X-0
Saber IP20X-0
Saber IP20X-0
Saber IP20X-0
Saber IP20X-0

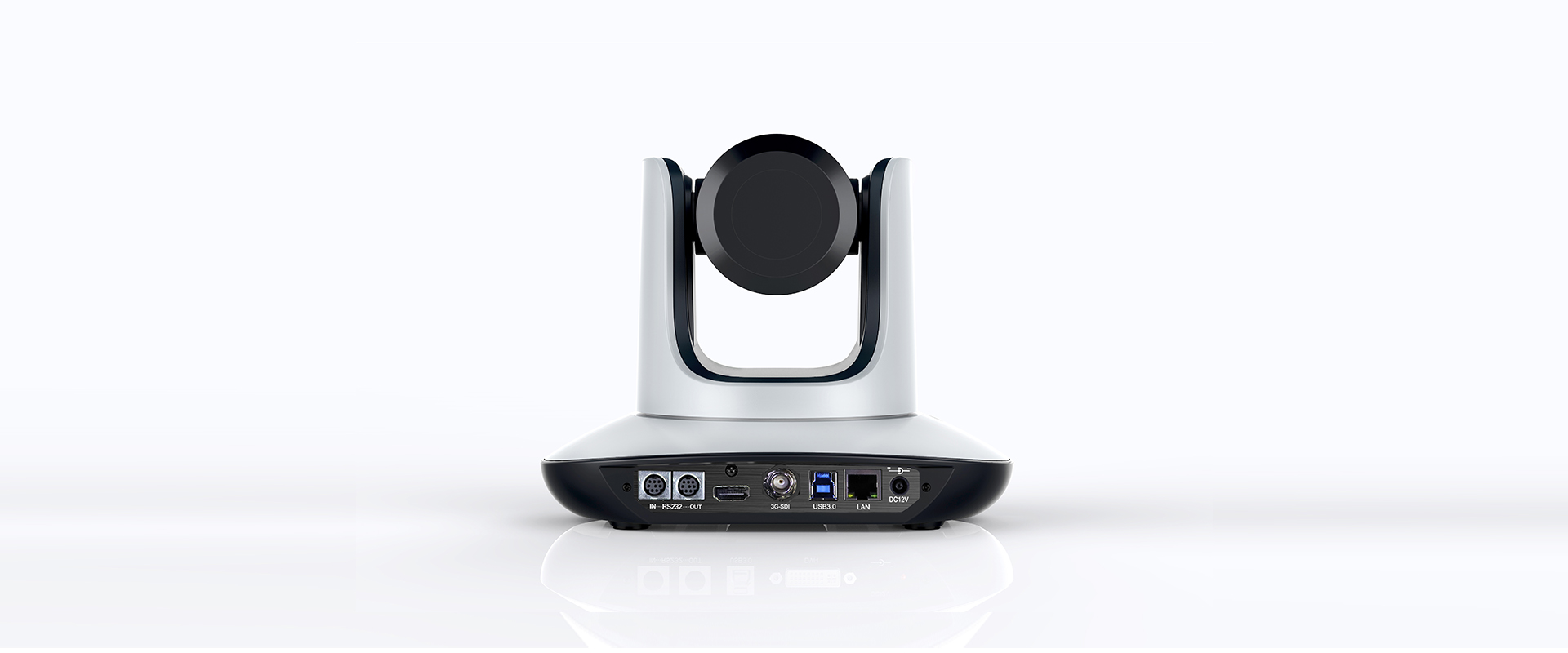

Saber IP20X
  • Model
  • IP-20FHD60
  • Sensor
  • 1/2.8 inch, 5 megapixel CMOS image sensor
  • Video Formats
  • HDMI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps
    IP: Main Stream: 1920x1080p @ 60fps, Substream: 1280x720, 704x576, 640x480, 352x288
    SDI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps
    USB 3.0: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps
    USB 3.0 & USB 2.0: 1024x576p @ 30fps, 960x540p @ 30fps, 640x360p @ 30fps, 352x288p @ 30fps
  • Zoom
  • 20x optical zoom & 2x digital zoom
  • FOV
  • 60° (diagonal)
  • F/number
  • Wide: F/1.5 (Wide)~3.0(Tele)
  • Focal Length
  • f=5.2 (near)~98mm (far)
  • Preset
  • 10 via remote controller; 128 via serial port; preset precision: 0.1°
  • Rotation Angle
  • Pan: -170° ~ +170°;   Tilt: -30° ~ +90°
  • Rotation Speed
  • Pan: 0°~120°/s ;         Tilt: 0°~80°/s
  • Control Port
  • RS232, RS485 (Serial Visca, Pelco-P/D), RJ45 (VISCA over IP), USB3.0 (UVC1.5), USB2.0 (UVC1.1)
  • Video Port
  • HDMI / RJ45 / SDI / USB 3.0 / USB 2.0
  • Network Speed
  • 1000 Mbps
  • Noise Reduction
  • 2D & 3D
  • SNR
  • >50dB
  • Minimum Lux
  • 0.01 lux
  • White Balance
  • Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
  • Anti Flicker
  • 50Hz/60Hz/OFF
  • D/N Mode
  • Supported
  • Gamma
  • Supported
  • Mirror Image
  • Supported
  • PanTilt Flip
  • Supported
  • Iris
  • Auto / Manual
  • Electric Shutter
  • Auto / Manual
  • BLC
  • Auto / Manual
  • Focus
  • Auto / Manual
  • Video Encoding
  • H.264/H.265
  • Bit Rate Control
  • Variable Bit Rate, Constant Bit Rate
  • Video Bit Rate
  • 1024Kbps~30720Kbps
  • Frames
  • 50HZ:1fps~50fps  60HZ:1fps~60fps
  • IP Protocol
  • TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.0, VISCA over IP (TCP&UDP)
  • POE
  • Supported
  • Input Voltage
  • DC12V, 2A
  • Dimension
  • 220mm×173mm×190mm
  • Net Weight
  • 1.25Kg(2.8Lbs)
