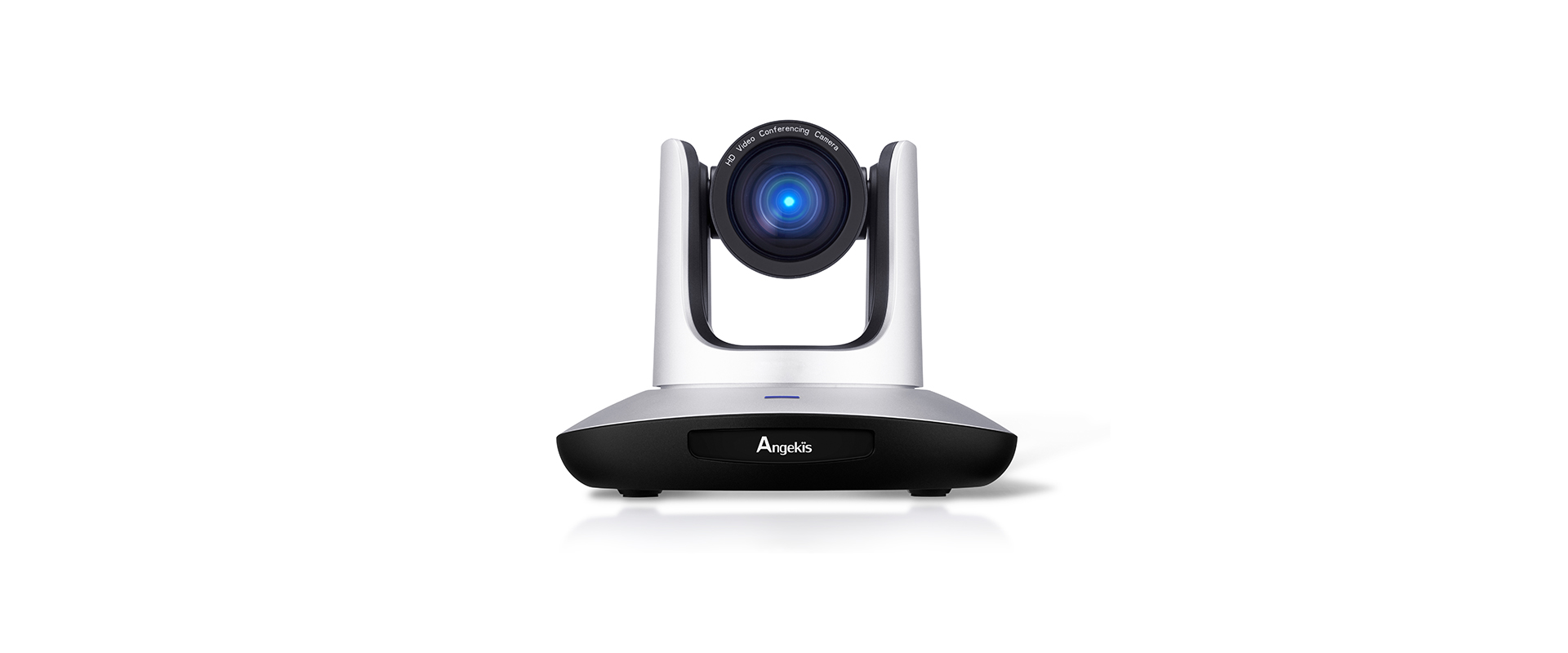

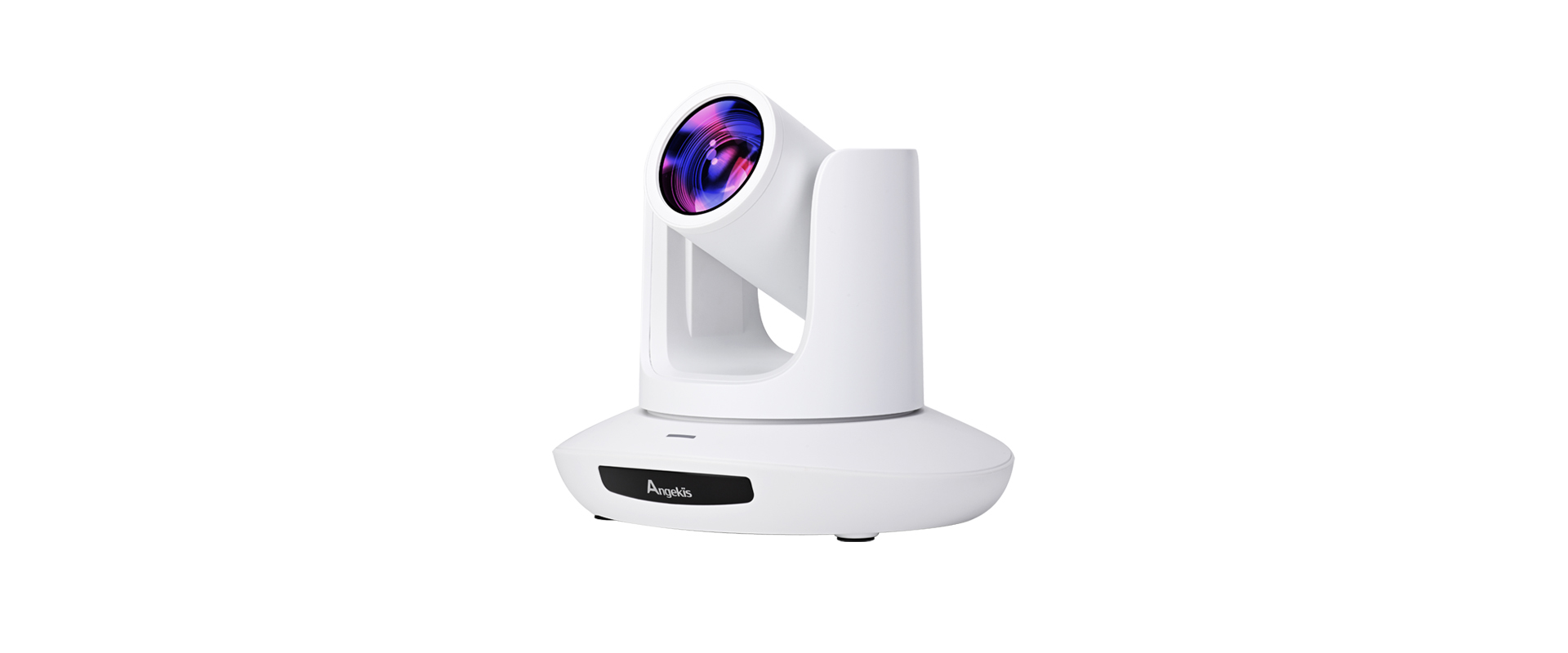

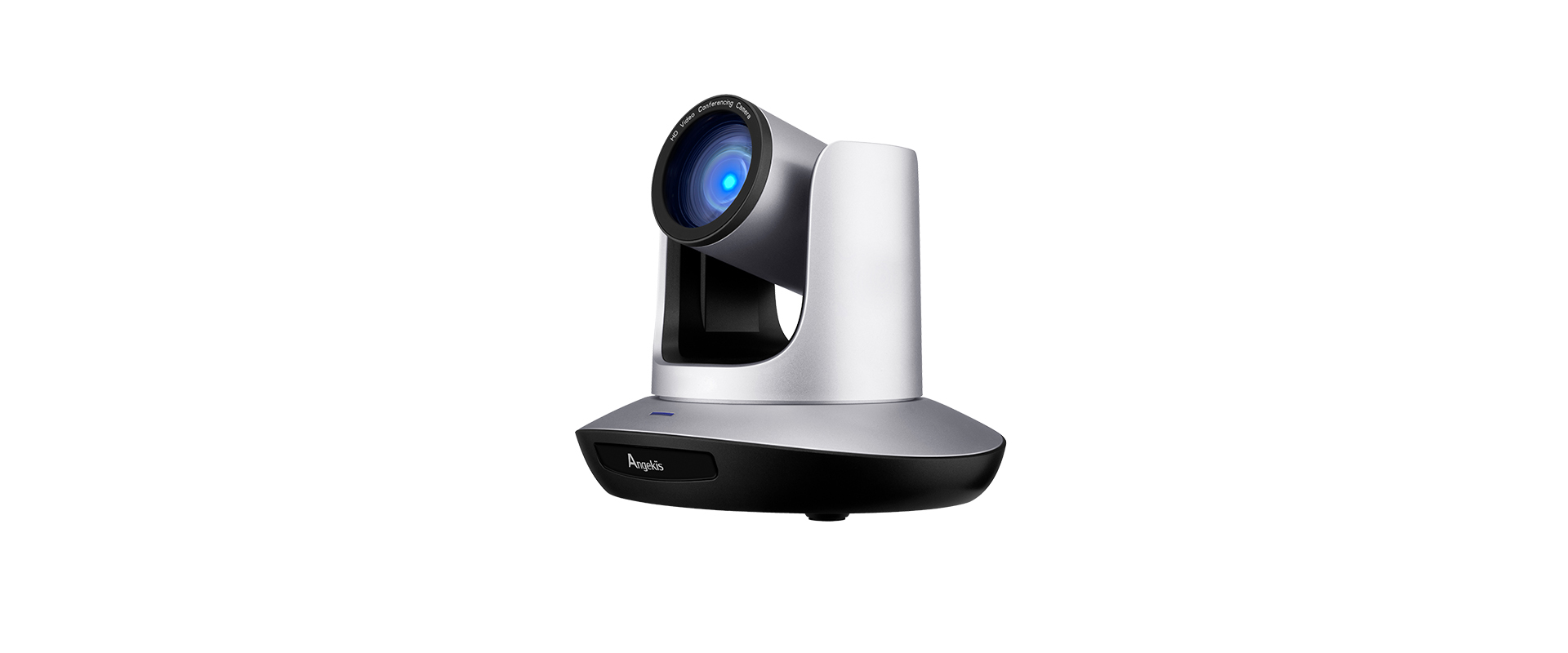

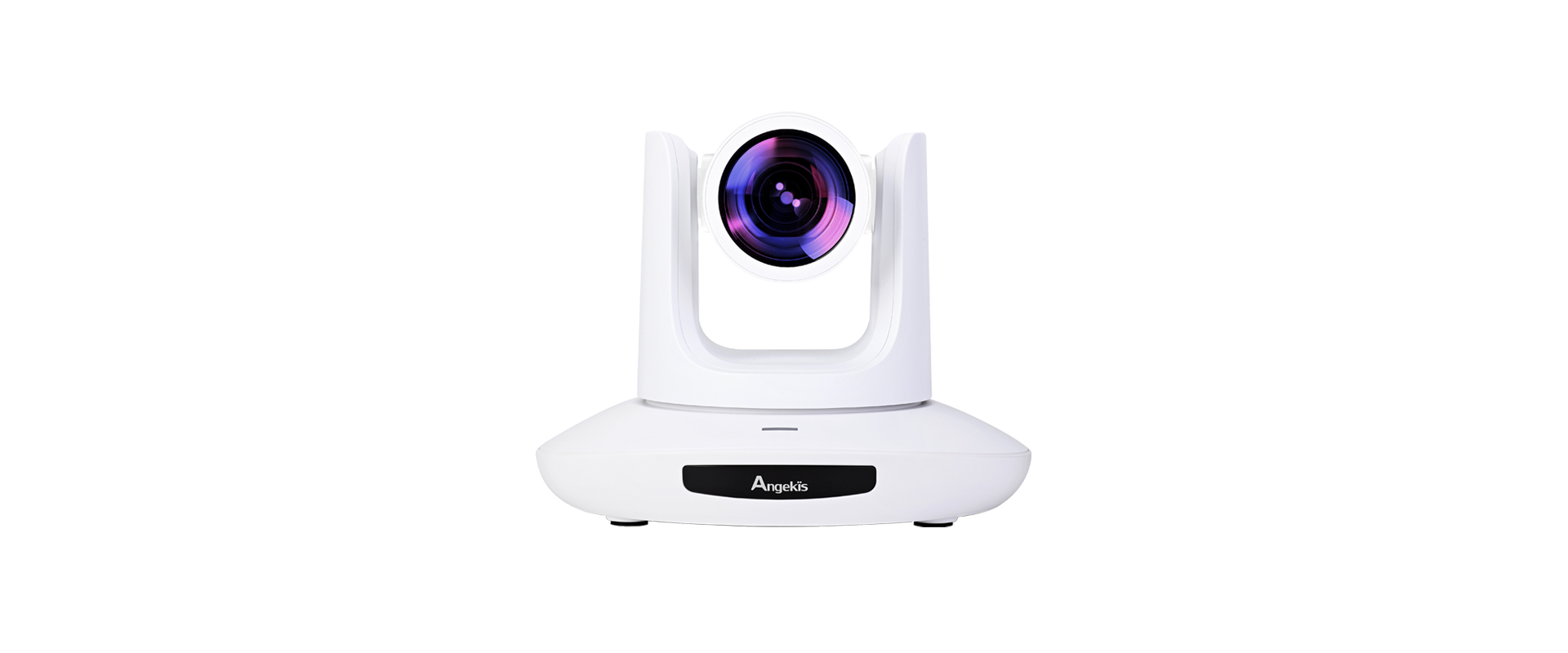

Saber IP20X NDI®

Features and scenarios

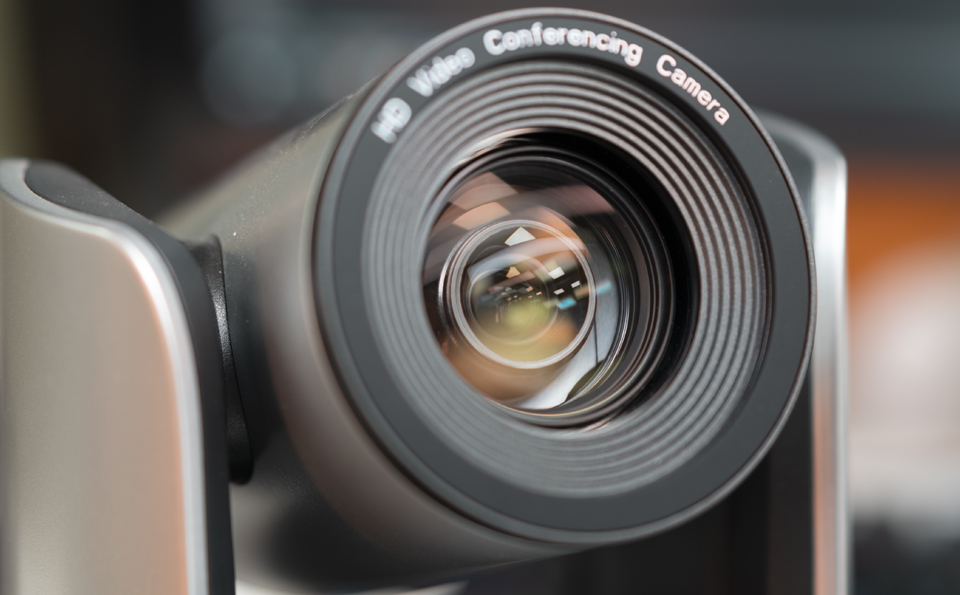

  • Crystal Clear in Full High Definition

    Utilizing advanced sensors and a multi-lens camera setup, the Saber IP20X NDI delivers crystal clear, Full HD resolution. In person meetings will feel pixelated by comparison.

  • 20x Optical + 2x Digital Zoom

    20x Optical + 2x Digital zoom gets you closer to your partners than you've ever imagined. Even in the largest conference rooms, the Saber IP20X NDI®'s zoom features will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

  • IP Live Streaming & NDI®|HX

    Show the world! Designed specifically for IP livestreaming and internet connectivity, the Saber IP20X NDI® is the ultimate machine for broadcasting over YouTube, Facebook Live, Twitch, or anywhere else your audience may be. The onboard NDI®|HX high efficiency streaming protocol gives you the tools you need to take your production to the next level. The camera comes with native NDI®|HX with no additional licensing necessary. (Note: NDI® is a registered trademark of Vizrt Group.)

  • Simultaneous Outputs

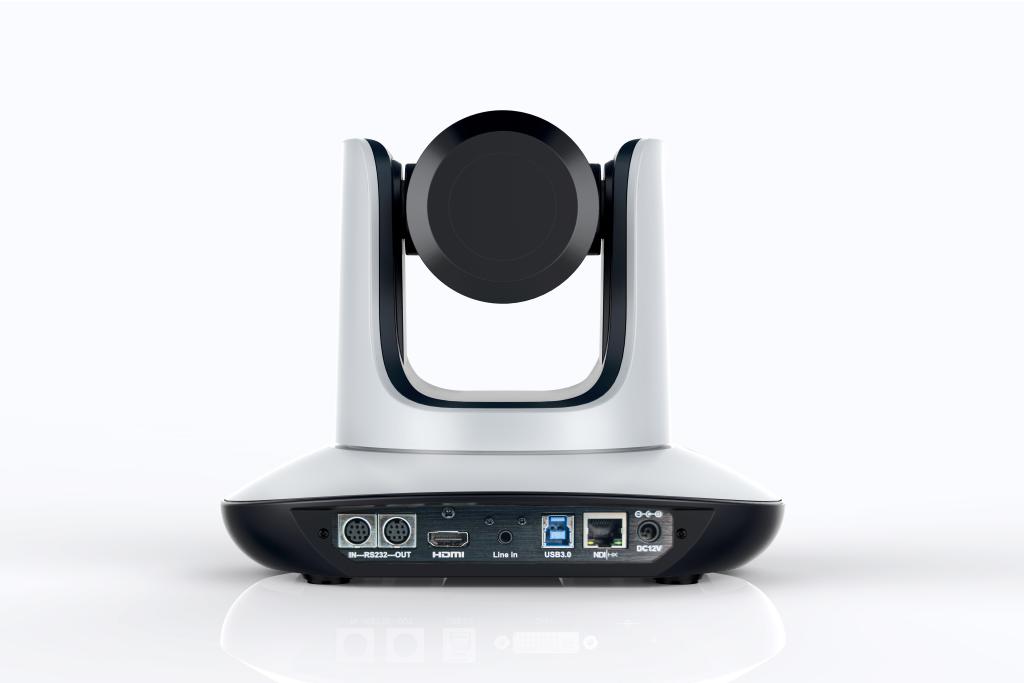

    With RS232 In/Out, USB 3.0, LAN, SDI, and HDMI ports, as well as IP connectivity, you can simultaneously daisy chain, command, stream, power, and monitor your Saber IP20X NDI® camera to give you maximum flexibility and control over your production.

  • UltraOptix

    UltraOptix Digital Noise Reduction (DNR) imaging technology reduces 3D video noise through the use of an innovative algorithm that filters out and corrects digital distortions. The result is a balanced image that renders with unrivalled clarity, sharpness, and definition - especially in low light situations.

Saber IP20X NDI®-0
Saber IP20X NDI®-0
Saber IP20X NDI®-0
Saber IP20X NDI®-0
Saber IP20X NDI®-0
Saber IP20X NDI®
  • Model
  • NDI-20FHD60
  • Component
  • Advanced DSP, 1/2.8 inch 2.4MP sensor
    20x Optical Zoom + 2x Digital Zoom, with 60° FOV
    1080p @ 30fps video over IP
    Supports H.264, H.265 encoding; POE
    Outputs: HDMI (V1.4), SDI, NDI|HX, USB3.0 (Compatible with USB2.0)
    Able to set IP address via OSD menu with the IR Remote Controller supplied.
    Automatic access to the IP address
    Special Focusing Algorithm - fast and precise performance when camera is zooming
    WDR, 3D Noise Reduction feature
    Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP
  • Connectivity
  • DC12V/2.0A , Power port: HEC3800 , VISCA In/Out RS232 , LAN , USB, SDI , HDMI
  • Motorized Pan and Tilt
  • Pan: ±170°
    Tilt: 90°(up)-30°(down)
    Rotation Speed: Pan -0 -120°/s, Tilt - 0-80°/s
    10 camera pre-sets via IR Remote Control
    Belt drive technology – twin motors for smooth, quiet and fast movement
  • Video Format
  • HDMI – 1080p @60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps
    IP: 1920x1080p @ 60fps (NDI) 1280x720, 704x576, 640x480, 352x288 @ 1~30fps(substream)
    SDI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps
    USB 3.0: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps
    USB 2.0: 1024x576p @ 30fps, 960x540p @ 30fps, 640x360p @ 30fps, 352x288p @ 30fps
  • Control
  • 10 presets via IR Remote Control
    128 via VISCA Control
    SB UVC FECC and 8 pin mini DIN
    VISCA/Pelco D/ Pelco P Protocol via RS232
    VISCA over IP –TCP/UDP
  • Mount
  • Reverse mountable, standard tripod screw on bottom of unit
    Camera mount for wall and ceiling (optional for additional purchase)
  • System Requirements
  • Windows® 7/ 8/8.1/10
    Mac OS® X 10.7 or higher
    Google Chrome book version 29.0.1547.70, platform 4319.79.0
  • Power Supply
  • Consumption: 12V, 2A
    Max Consumption: 24W
  • Environmental Data
  • Working temperature: -5 - 45°C
    Storage temperature: -20 - 60°C
  • Dimensions
  • Package Dimensions: 310 x 265 x280 mm
    Net Weight: 1.47Kg (3.25Lbs)
  • Warranty
  • 3 Years
  • Compatible Applications
  • Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangouts, GoToMeeting, Intel® UniteTM, Microsoft® LyncTM, SkypeTM, Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit
  • Control Port
  • RS232, RS485 (Serial Visca, Pelco-P/D, RJ45 (VISCA over IP, USB3.0 (UVC1.5), USB2.0(UVC1.1)
  • IP Protocol
  • TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.4, VISCA over IP (TCP&UDP), NDI®|HX, SRT Compatible
