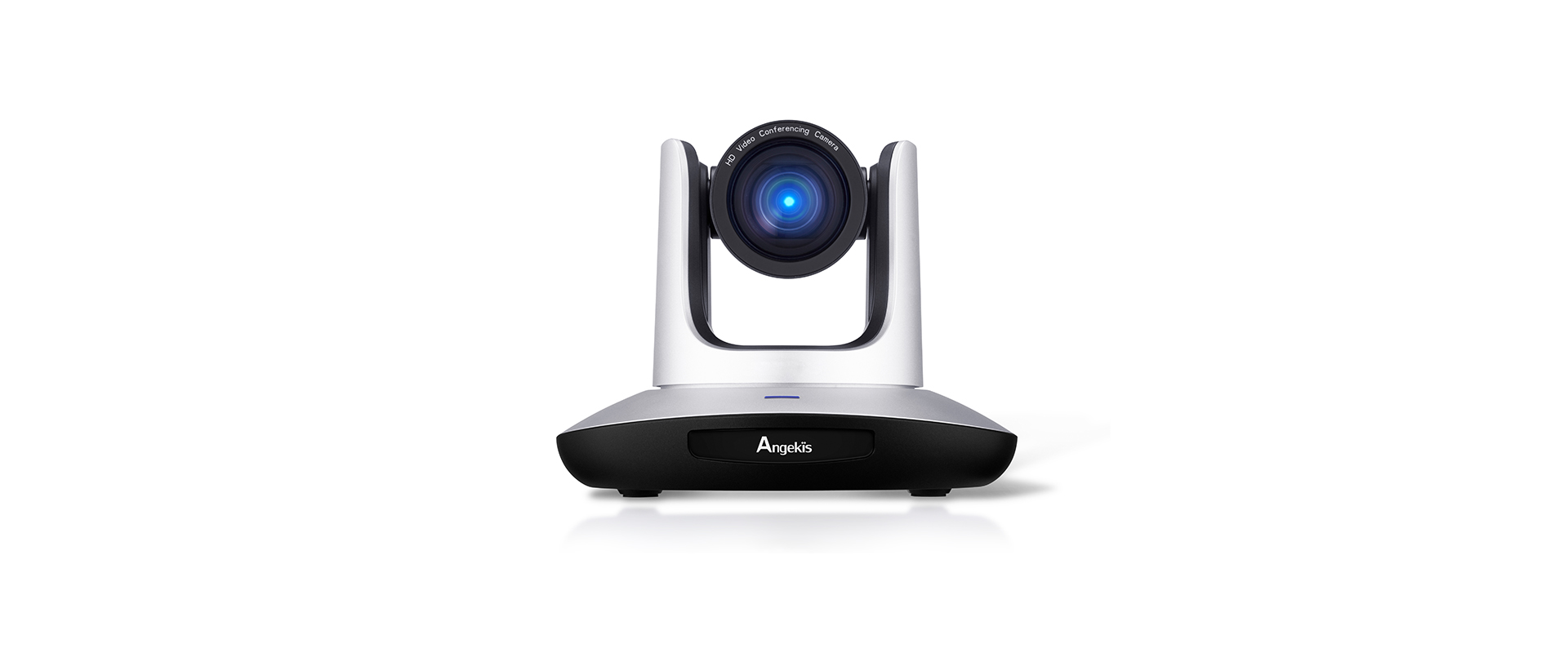

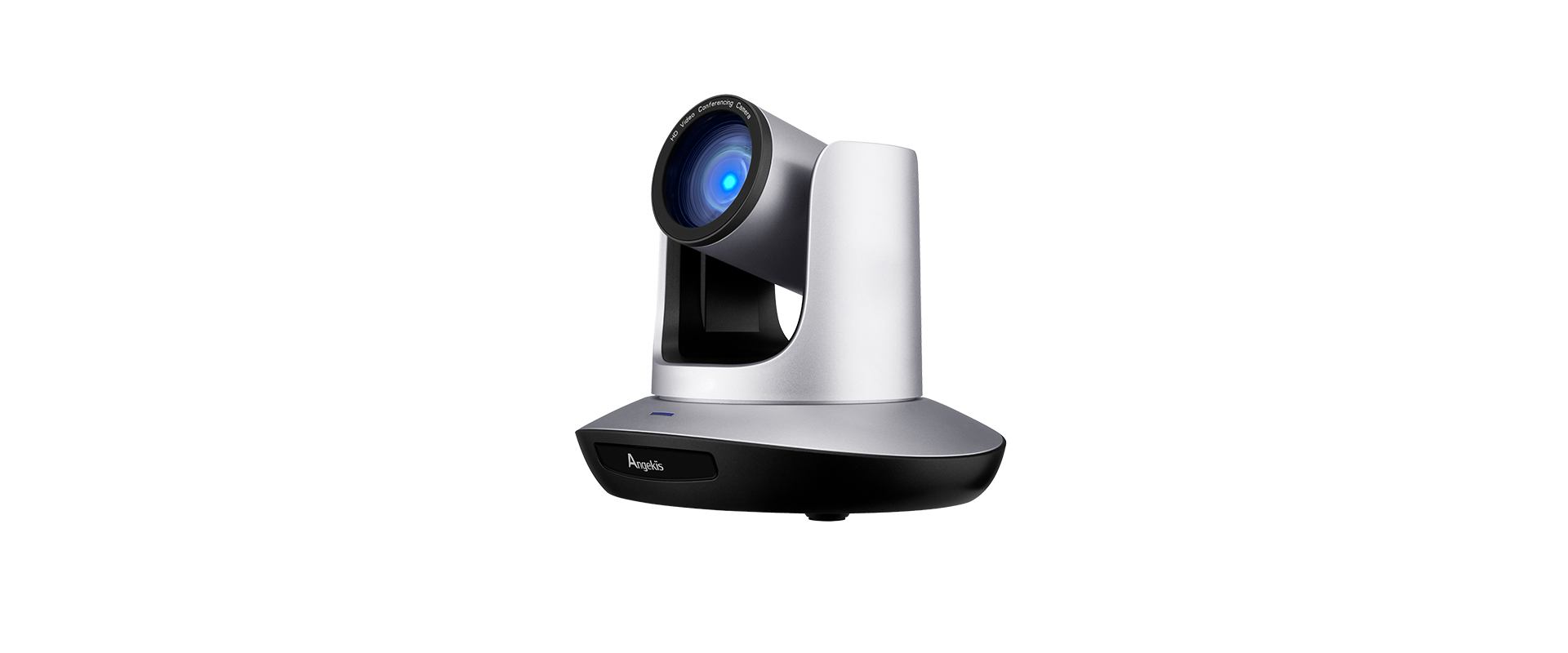

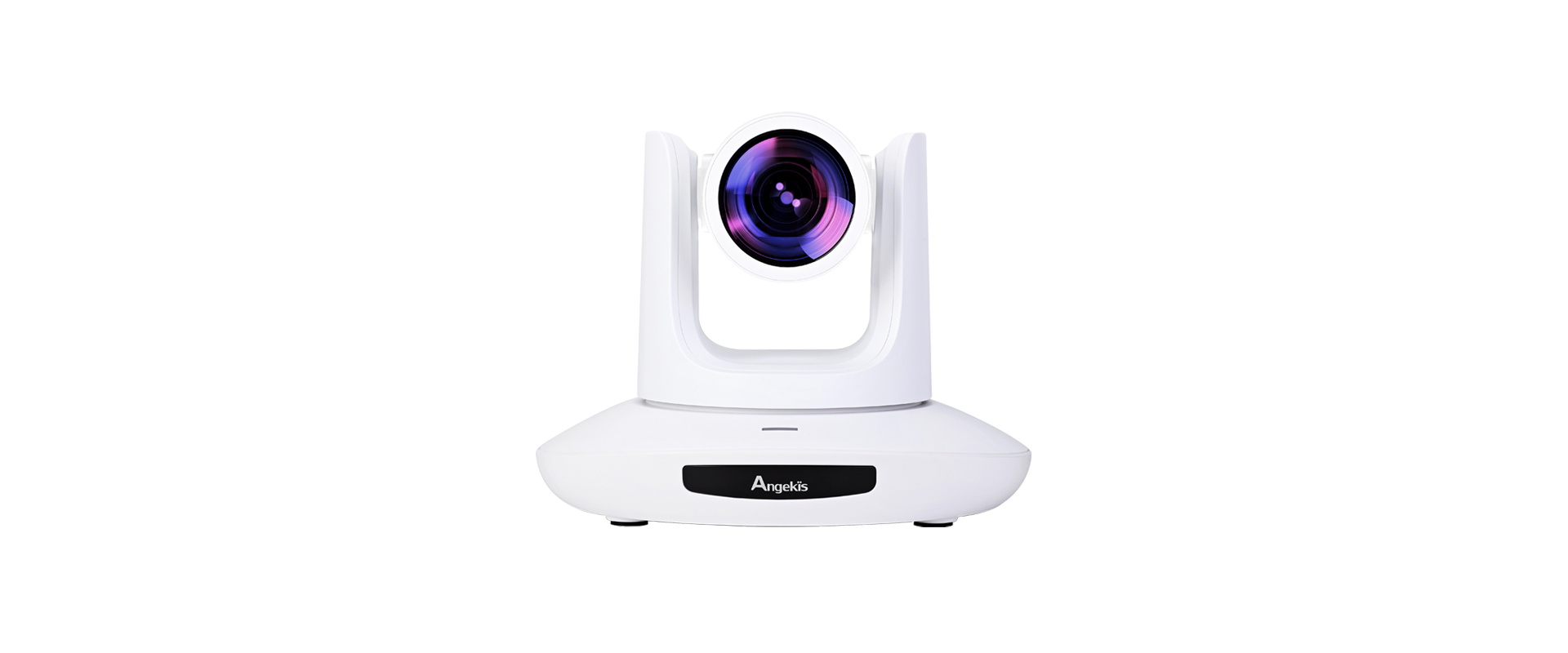

Saber 4K

Features and scenarios

  • 12x Optical + 2x Digital Zoom

    12x Optical + 2x Digital zoom gets you up close and personal. Even in the largest conference rooms, the Saber 4K’s zoom features will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

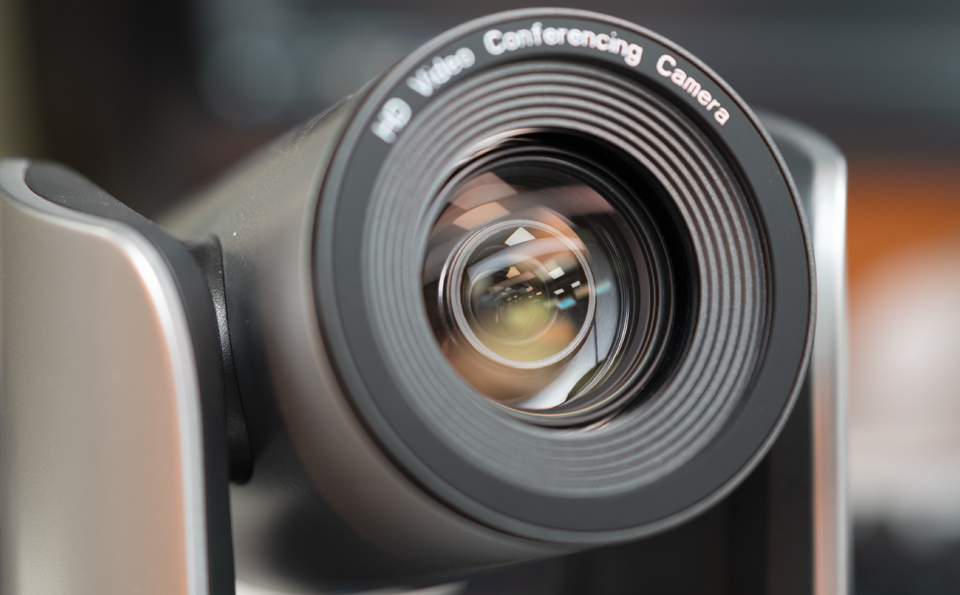

  • Ultra HD 4K Optics

    Utilizing advanced sensors and a multi-lens camera setup, the Saber 4K delivers video in crystal clear, ultra high definition 4K resolution.

  • UltraOptix

    UltraOptix Digital Noise Reduction (DNR) imaging technology reduces 3D video noise through the use of an innovative algorithm that filters out and corrects digital distortions. The result is a balanced image that renders with unrivalled clarity, sharpness, and definition - especially in low light situations.

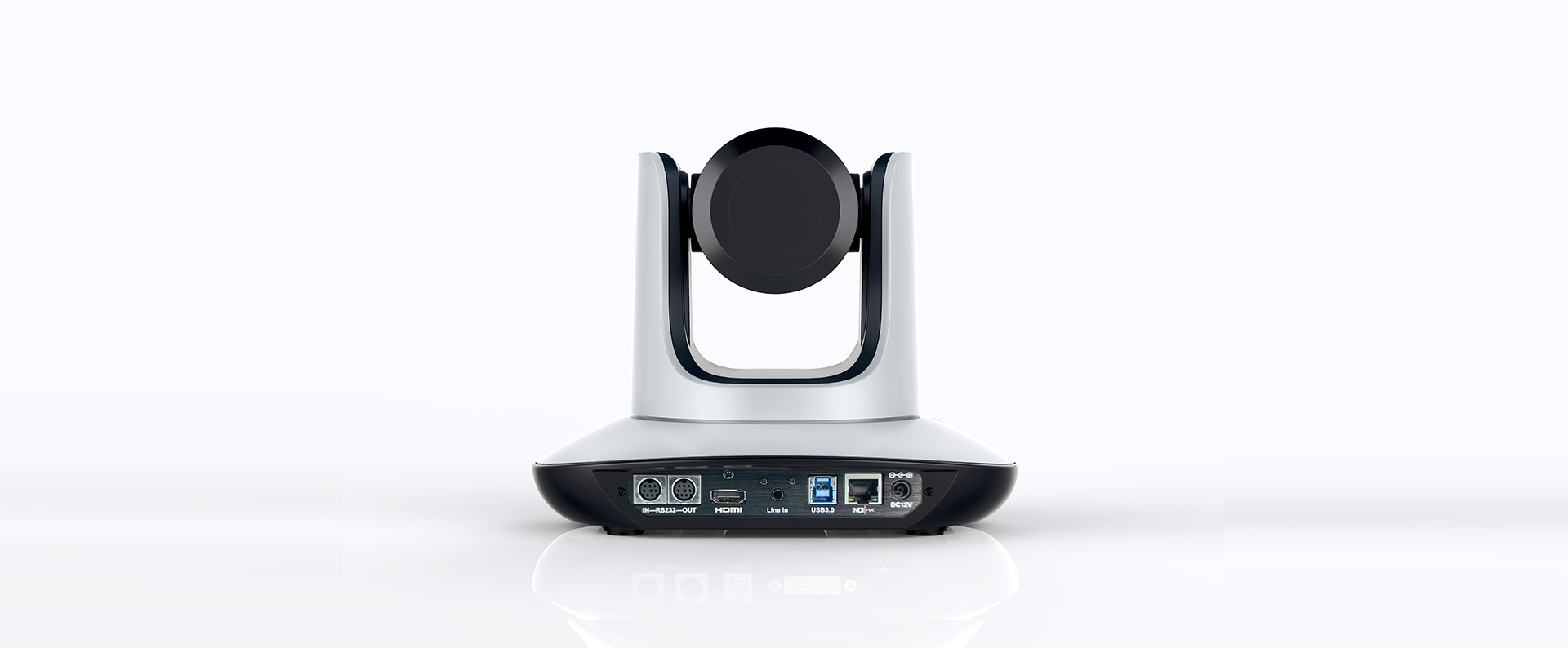

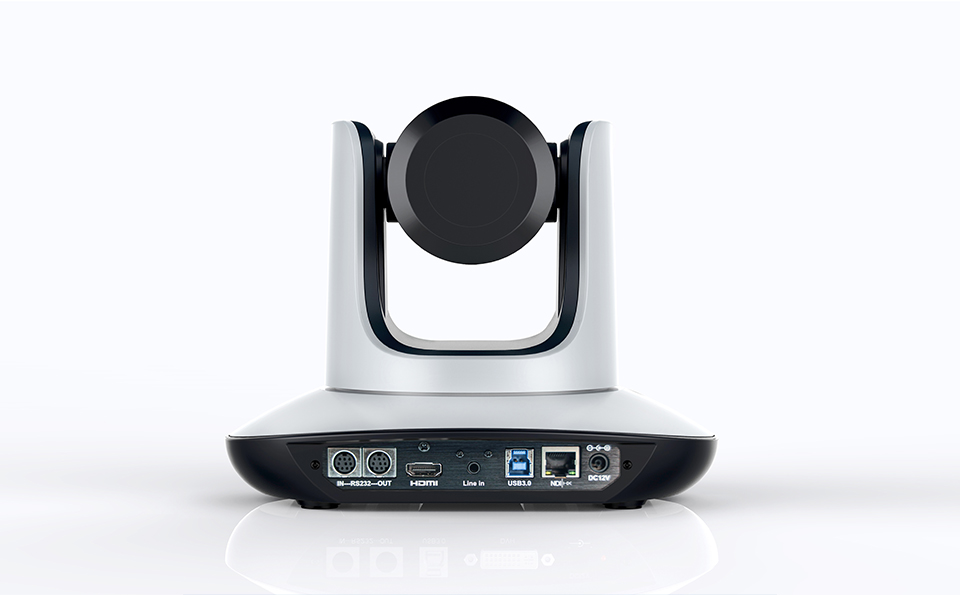

  • Simultaneous Outputs

    With RS-232 In/Out, USB 3.0, LAN, and HDMI ports, you can simultaneously daisy chain, command, stream, power, and monitor your Saber 4K camera to give you maximum flexibility and control over your production.

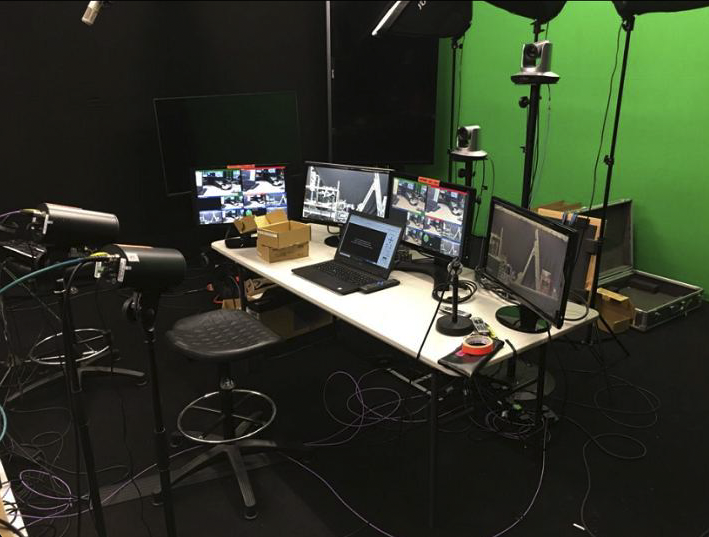

  • IP Live Streaming

    Show the world! With best in class IP livestreaming connectivity, the Saber 4K is an excellent machine for broadcasting over YouTube, Facebook Live, Twitch, or anywhere your audience may be.

Saber 4K-0
Saber 4K-0
Saber 4K-0
Saber 4K-0
Saber 4K-0
Saber 4K
  • Model
  • Saber-12UFHD36
  • Sensor
  • 1/2.8 inch 8.42MP CMOS sensor
  • Video Formats
  • HDMI:3840x2160p @ 30/25fps, 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps
    IP: Main stream: 3840x2160p @ 30fps, 1920x1080p @ 30fps, Substream: 1280x720, 704x576, 640x480, 352x288
    SDI: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 1080i @ 60/50fps
    USB 3.0: 1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps
    USB 3.0 & USB 2.0: 1024x576p @ 30fps, 960x540p @ 30fps, 640x360p @ 30fps, 352x288p @ 30fps
  • Zoom
  • 12x optical zoom & 2x digital zoom
  • ƒ-number
  • Wide: 1.84                Tele: 2.81
  • FOV
  • 6.3°(near)~72.5°(far)
  • Min. Focus Distance
  • Wide: 0.3m               Tele: 1m
  • Preset
  • 10 via remote controller; 128 via serial port; preset precision: 0.1°
  • Rotation Angle
  • Pan: -170° ~ +170°;   Tilt: -30° ~ +90°
  • Rotation Speed
  • Pan: 0°~120°/s ;         Tilt: 0°~80°/s
  • Control Port
  • RS232, RS485 (Serial VISCA, Pelco-P/D), RJ45 (VISCA over IP), USB3.0 (UVC1.5), USB2.0 (UVC1.1)
  • Video Port
  • HDMI (v1.4) / RJ45/ SDI / USB 3.0 / USB 2.0
  • Network Speed
  • 1000 Mbps
  • Noise Reduction
  • 2D & 3D Digital Noise Reduction
  • SNR
  • >50dB
  • Focal Length
  • f=3.92 (near)~47.32mm (far)
  • Minimum Lux
  • 0.01 lux
  • White Balance
  • Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor/
  • Anti Flicker
  • 50Hz/60Hz/OFF
  • D/N Mode
  • Supported
  • Gamma
  • Supported
  • Mirror Image
  • Supported
  • PanTilt Flip
  • Supported
  • Iris
  • Auto / Manual
  • Electric Shutter
  • Auto / Manual
  • BLC
  • Auto / Manual
  • Focus
  • Auto / Manual
  • Video Encoding
  • H.264/H.265 (default: H.264)
  • Bit Rate Control
  • Variable Bit Rate, Constant Bit Rate
  • Video Bit Rate
  • 1024Kbps~30720Kbps
  • Frame Rate
  • 50HZ: 1fps~50fps  60HZ:1fps~60fps  (3840x2160 max. 30fps)
  • IP Protocol
  • TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.4, VISCA over IP (TCP&UDP), SRT Compatible
  • POE
  • Supported
  • Input Voltage
  • DC12V, 2A
  • Dimensions
  • 220mm×173mm×190mm
  • Net Weight
  • 1.25Kg(2.8Lbs)
