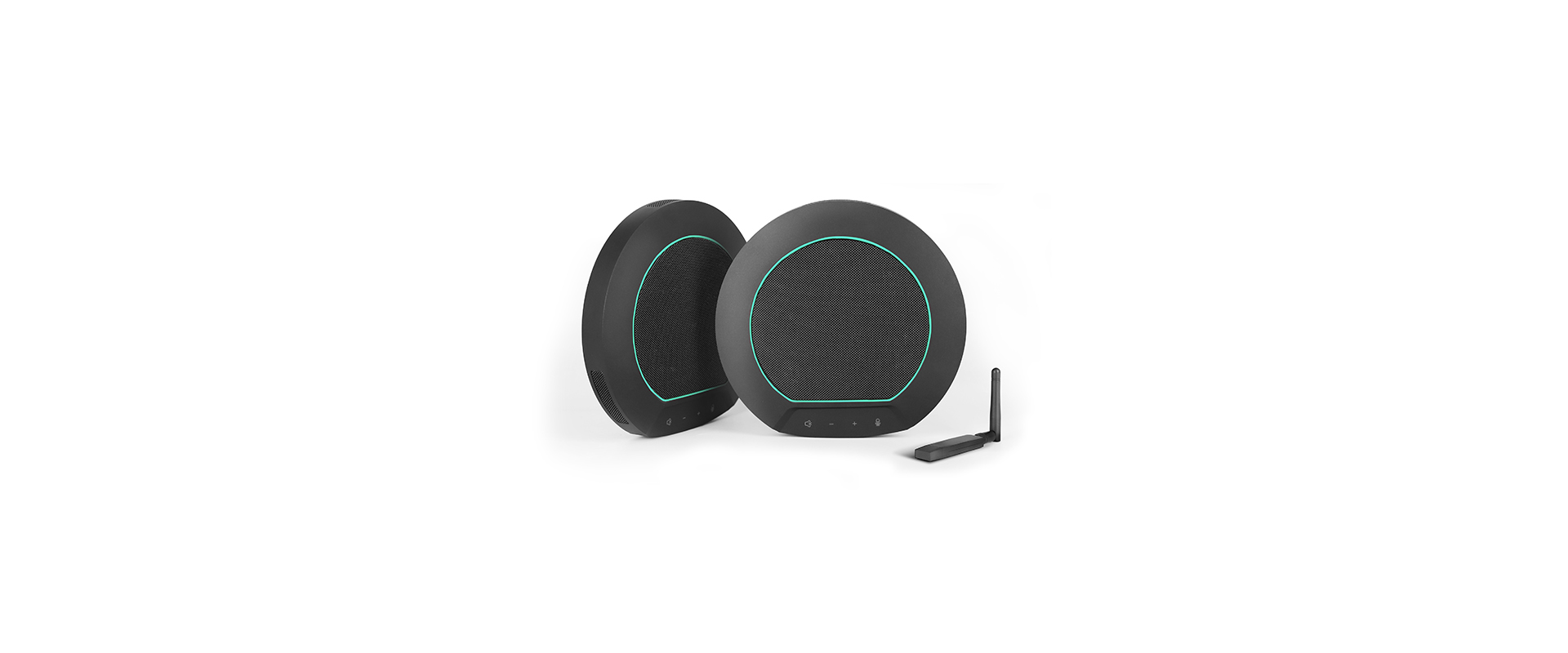

Cleartalk HD DC ASP-10D-2

Features and scenarios

  • High Tech Audio

    360 degree coverage, a 3 meter pickup range on each unit, 384ms echo cancellation, and dynamic noise reduction audio processing technology make the Cleartalk HD DC ASP-10D-2 audio communications system a high tech powerhouse.

  • High Definition Voice

    With full HD sound and simultaneous two-way communication channels - across both integrated speakerphone units - your conversation flow smoothly and naturally while sounding crystal clear.

  • Plug and Play Versatility

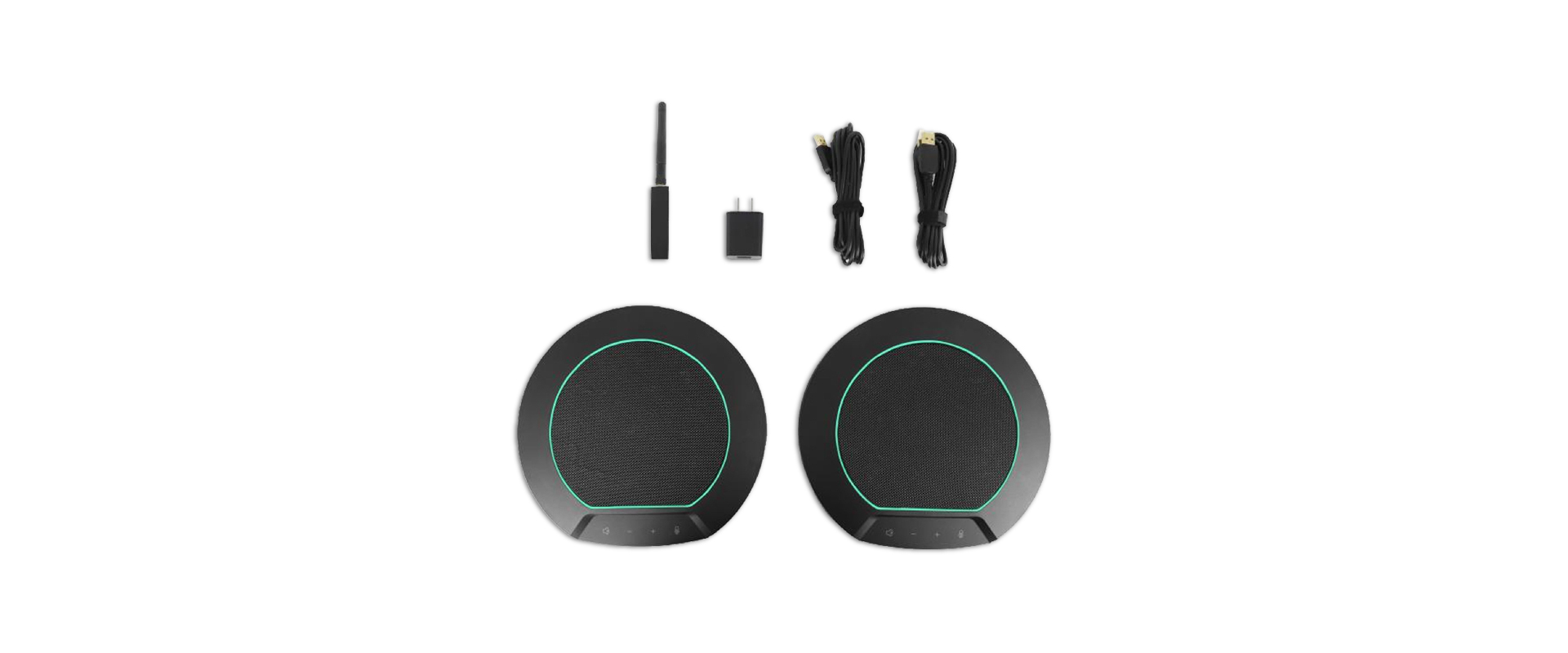

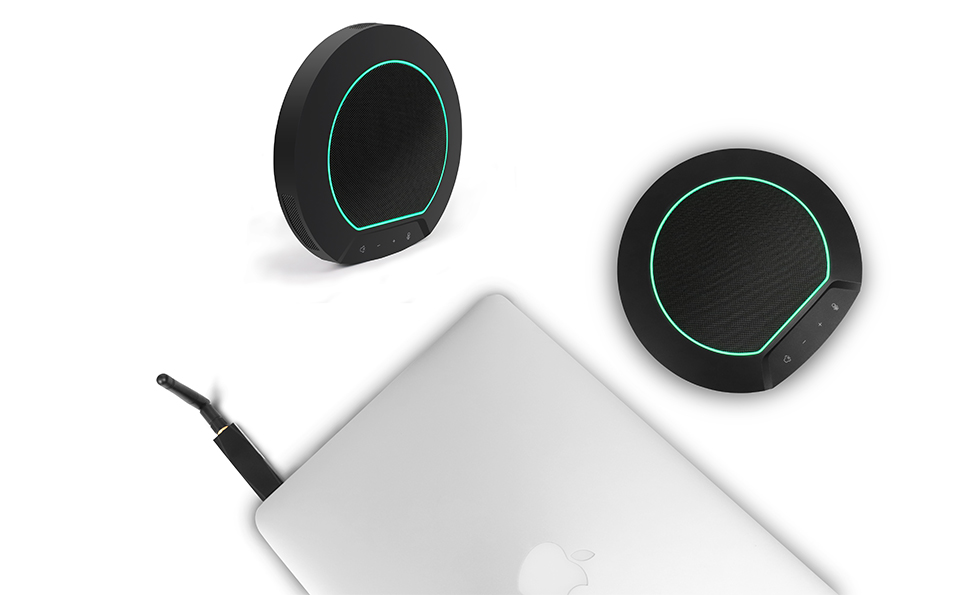

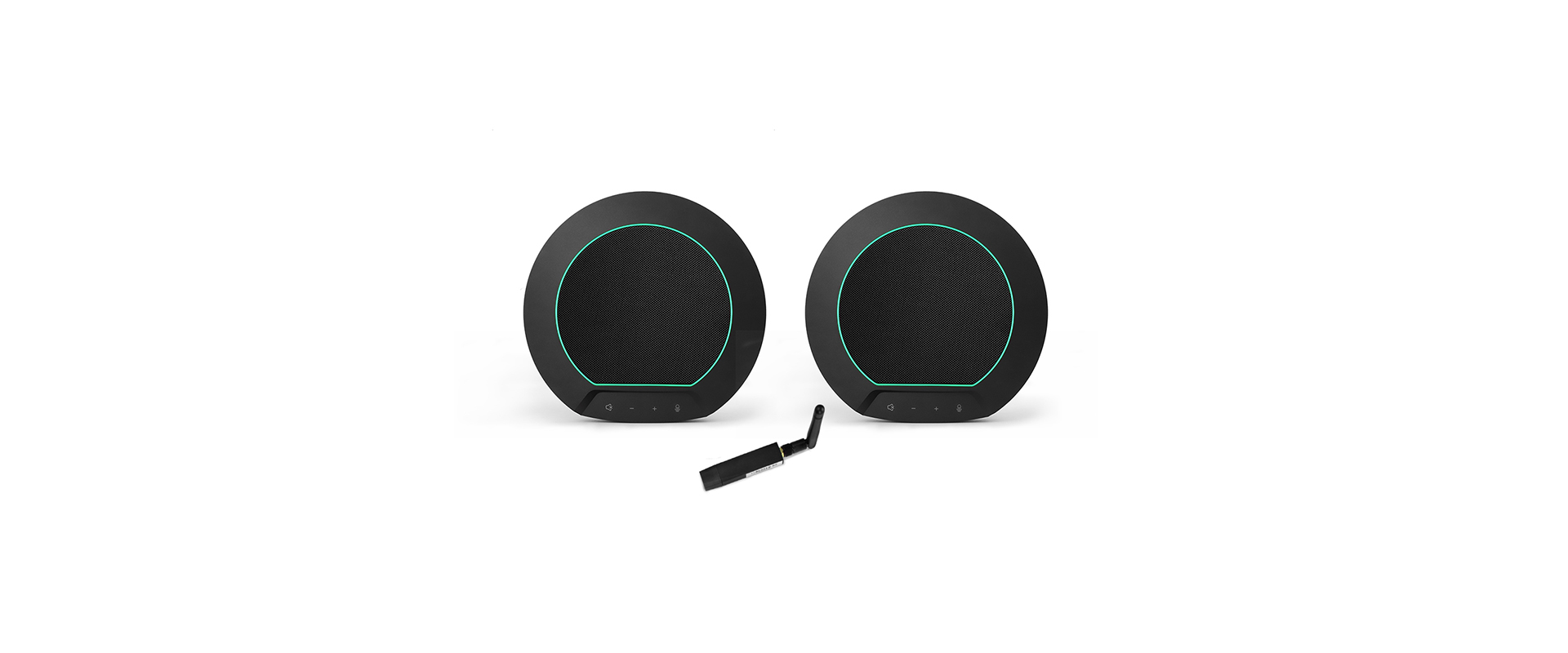

    With two wireless portable speakerphone units daisy chained together, up to 10 hours of battery life, and simple plug and play functionality with the included 2.4GHz USB dongle, you can enjoy seamless communications that simply works.

  • 2.4G Wireless Communication

    Wireless functionality at warp speed. Get the most out of your conferencing software with 2.4GHz WiFi connectivity provided by the included USB dongle.

Cleartalk HD DC ASP-10D-2-0
Cleartalk HD DC ASP-10D-2-0
Cleartalk HD DC ASP-10D-2-0
Cleartalk HD DC ASP-10D-2-0
Cleartalk HD DC ASP-10D-2
  • Model
  • ASP-10D-2
  • Architecture
  • Tabletop console contains audio processing functions, USB function, indicator and touch key function
    USB cable
    USB extend line
  • Dimension
  • 217*206*45mm
  • Audio
  • 384ms echo cancellation
    Dynamic noise reduction
    Full duplex
    360 degree pick-up range
    DSP audio processing
  • Computer system
  • Windows 8 / Windows 7 / Windows 10 / Windows XP, etc
    Mac OSX 10.7 and above
  • Function
  • Supports most computer audio software such as: Skype, Zoom, Team, Whatsapp -etc
    Microphone mute
    Loudspeaker mute
    Volume up/down
  • Environmental requirements
  • Temperature: 5°-40°
    Humidity: 20 -85% (no condensation)
    Noise level: <48db
    Storage temperature: -10°-40°
    Reverberation time: <0.5 seconds
  • Keys
  • Microphone mute key
    Loudspeaker mute key
    Volume up/down keys
  • LED circle indicator
  • Green light always on: working normally
    Red light is always on: the microphone is muted
    A row of green lights at the bottom: the speaker is muted
    Red light flashes 3 times at the bottom: Connecting to charge
    Green lights flashing at four corners: normal standby
    Red lights flashing at four corners: low power indication
    The green light at the bottom will flash 3 times every 5 minutes while charging
    Long press the switch button at the bottom of the device for 3 seconds to switch on and off normally.
    In standby mode, the device will automatically shut down after 20 minutes
  • Product execution standard
  • YD/T 993-1998
    GB/T 9254-2008
    GB 4843.1-2011
