Cleartalk Anchor ASP-06

Features and scenarios

  • Versatility

    With a built-in USB 2.0 cable and onboard Bluetooth, the Cleartalk Anchor ASP-06 can link up with almost any computer, mobile phone, or tablet. With its wireless capabilities and 10 hour battery life, the Anchor is a portable, dependable, and versatile machine.

  • Perfect Full Duplex Communication

    Simultaneous two-way communication channels makes your conversation flow smoothly and naturally.

  • High Tech Audio

    360 degree coverage, a 3 meter pickup range, 384ms echo cancellation, and dynamic noise reduction audio processing technology make the Cleartalk Anchor ASP-06 a high tech powerhouse of audio communication.

Cleartalk Anchor ASP-06-0
Cleartalk Anchor ASP-06-0
Cleartalk Anchor ASP-06-0

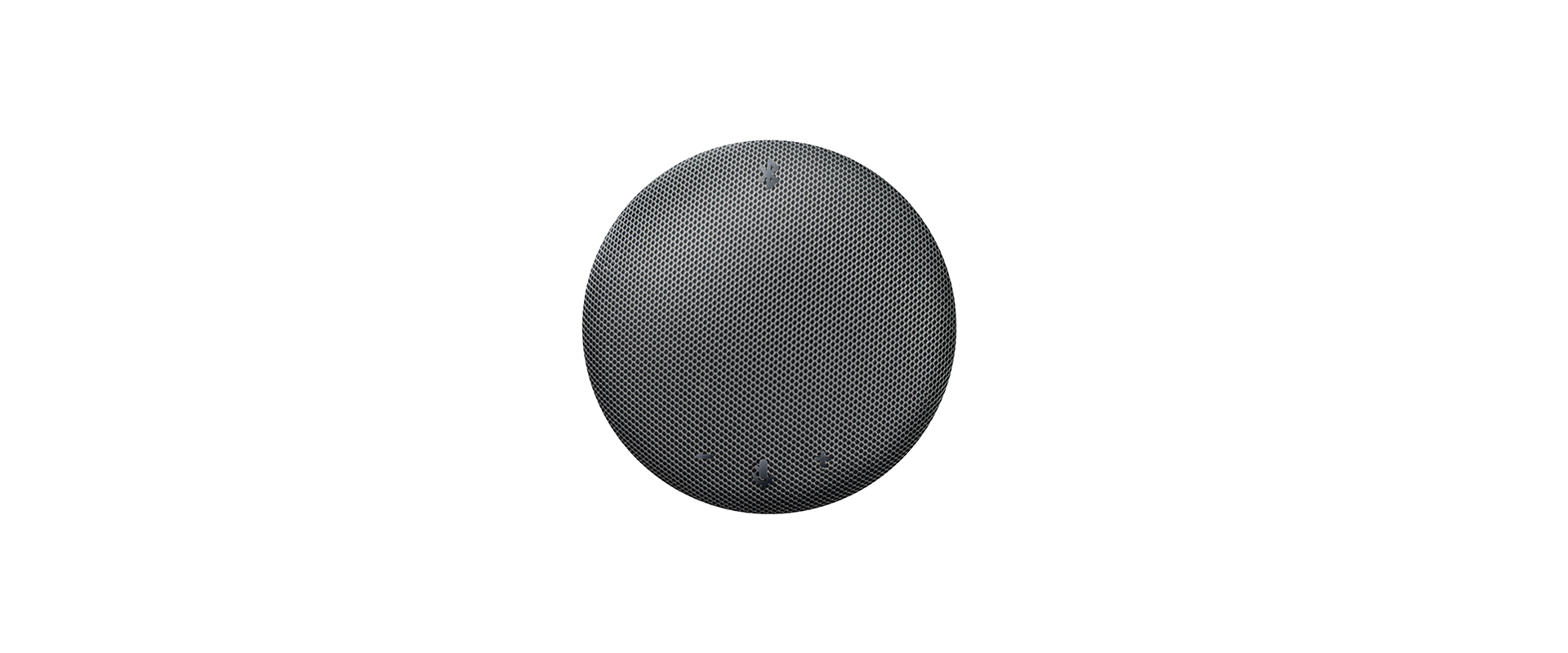

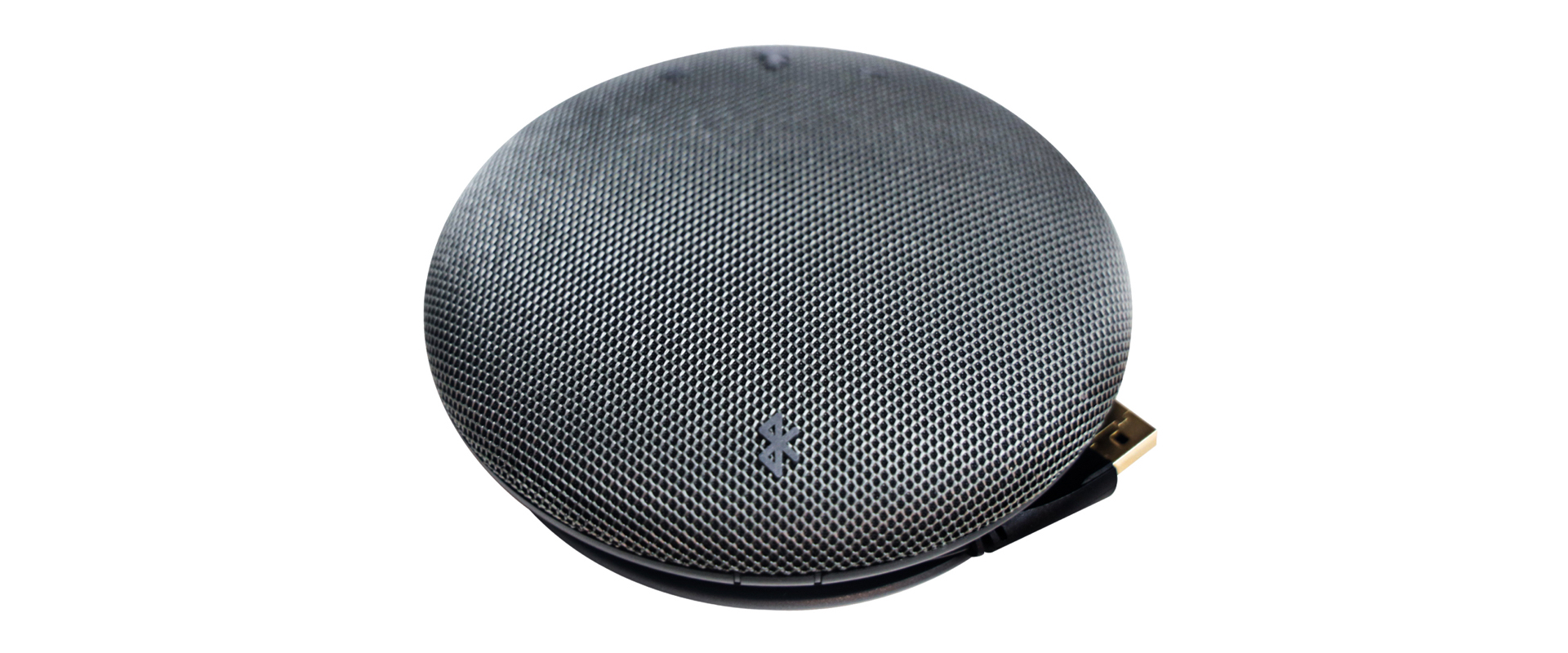

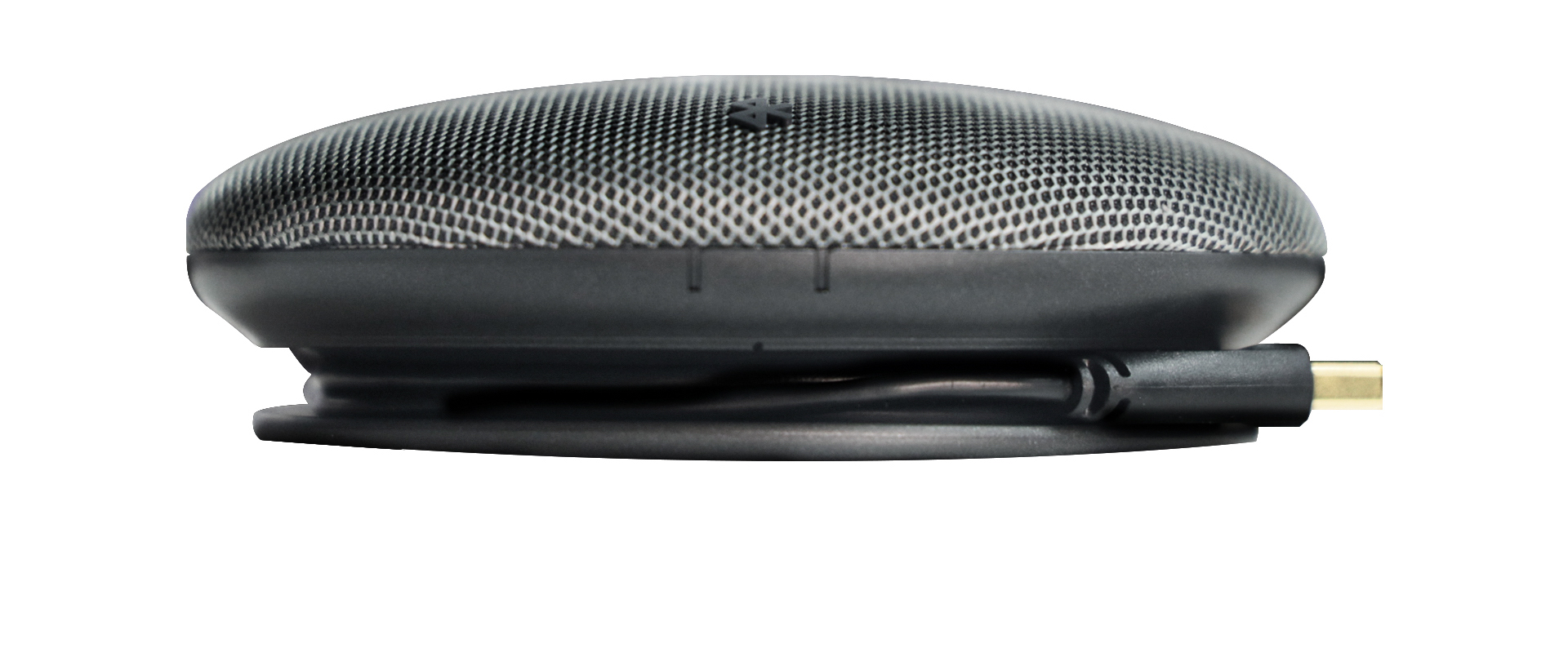

Cleartalk Anchor ASP-06
  • Model
  • ASP-06
  • Buttons
  • Bluetooth button (icon state)
    Microphone mute button
    Volume up button
    Volume down button
    Switch button (when a call comes in, short press to answer or hang up; long press to switch the phone)
  • Size
  • Diameter:120mm
    Height: 39.5mm
  • Weight
  • 252g
  • Interface
  • USB 2.0 (full speed), bluetooth
  • Microphone
  • 1 omnidirectional microphone, 360º coverage, 3 meter range
  • Loudspeaker
  • 2 inch antimagnetic speaker,4Ω5w
  • Power
  • Built-in lithium battery (continuous use time: about 10 hours); power over USB
  • System Compatibility
  • Windows 10 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit), Windows 7 (32-bit/64-bit), mac OS 10.12 and above
  • Audio
  • Instantaneous maximum:90 dB (0.5 m)
    USB mode: pickup: 48K sampling rate, playback: 48K sampling rate
    Bluetooth call mode: 16K pickup sampling rate + 16K playback sampling rate
    Bluetooth playback mode: 48K playback sampling rate
    384ms echo cancellation, intelligent dynamic noise reduction, automatic gain control, full duplex communication
  • Connectable equipment
  • USB: windows or mac OS
    Bluetooth: Android or IOS system
    · loudspeaker mute
    · volume up/down
  • Certification
  • Product execution standard
  • YD/T 993-1998
    GB/T 9254-2008
    GB 4843.1-2011
  • Audio Width
  • USB mode: pickup: 48K sampling rate, playback: 48K sampling rate
  • Indicator LED
  • Working normal:Green light is on
    Speakerphone mute: Green light flashing
    Microphone mute: Red light on
    Volume adjustment: The indicator flashes briefly following the adjustment
    Low battery: Orange indicator light flashes quickly
    Charging: The indicator red light is on; the red light turns off when fully recharged
  • Warranty
  • 3 year warranty
    1 year battery guarantee
