Ceiling Mic Pro ASP-C-02

Features and scenarios

  • HD Voice Area Microphones

    With 360 degree coverage, a range of up to 10 meters, and high definition voice fidelity, you can count on Angekis ceiling microphones to deliver excellent audio in big spaces.

  • Big Technology in a Little Package

    The Digital Signal Processor (DSP) central unit houses advanced audio processing technology, offers excellent connectivity, and places all essential controls at your fingertips. It’s elegant, simple, and conveniently sized.

  • Versatility and Compatibility

    For more advanced audio controls, the USB Type-B control port plugs right into just about any Windows or Mac OSX machine. Plug it in, fire up your favorite audio and video editing software, and get down to business.

  • Auctopus Audio Processing

    The DSP uses Auctopus smart audio mixing technology to keep your audio clean and clear. Third generation adaptive echo cancellation, adaptive noise suppression, and adaptive gain adjustment all in one seamless package.

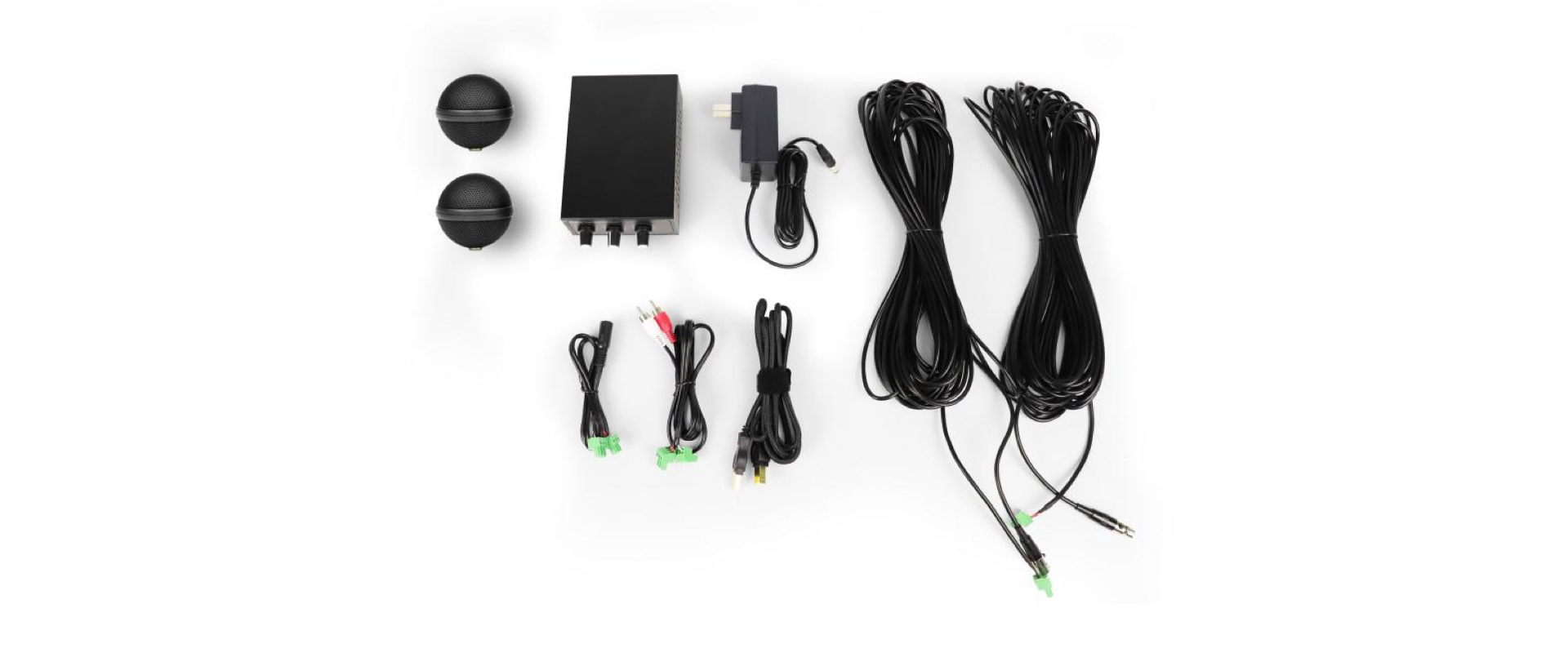

  • Everything Included

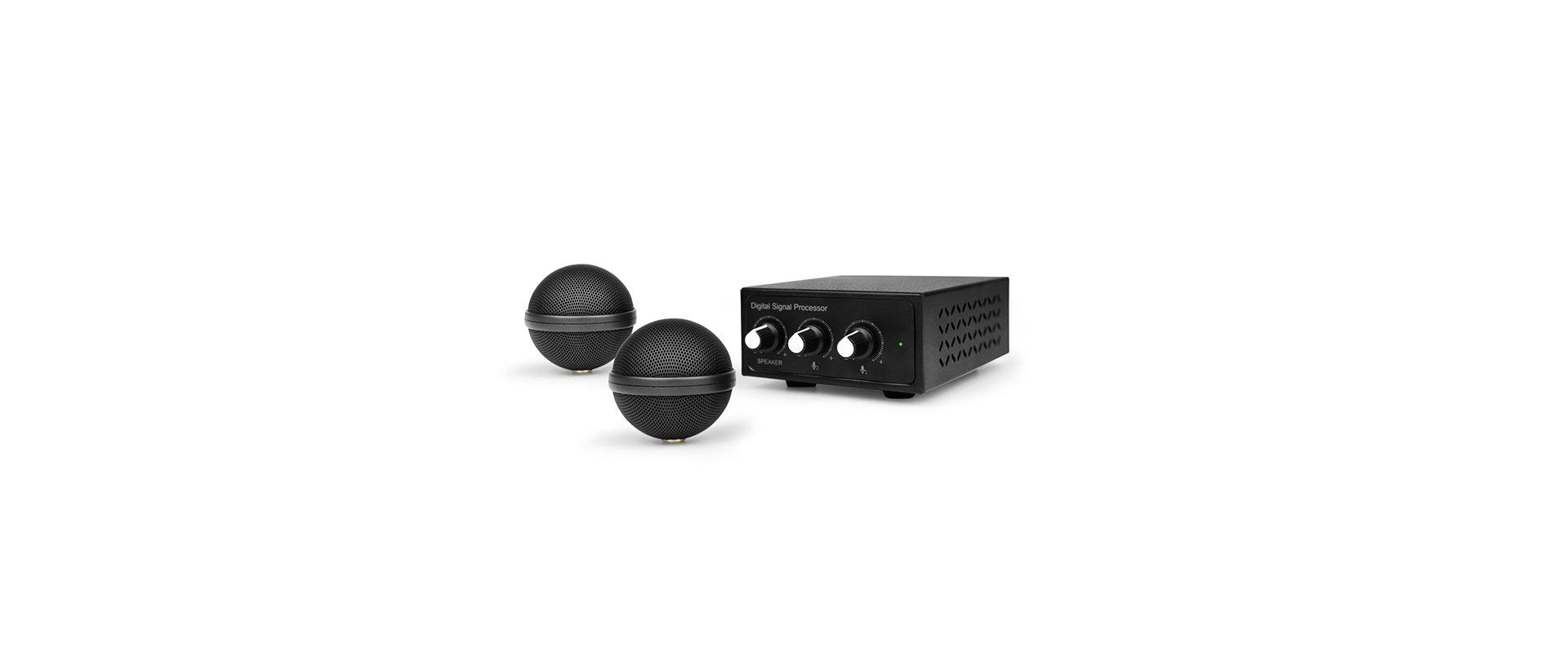

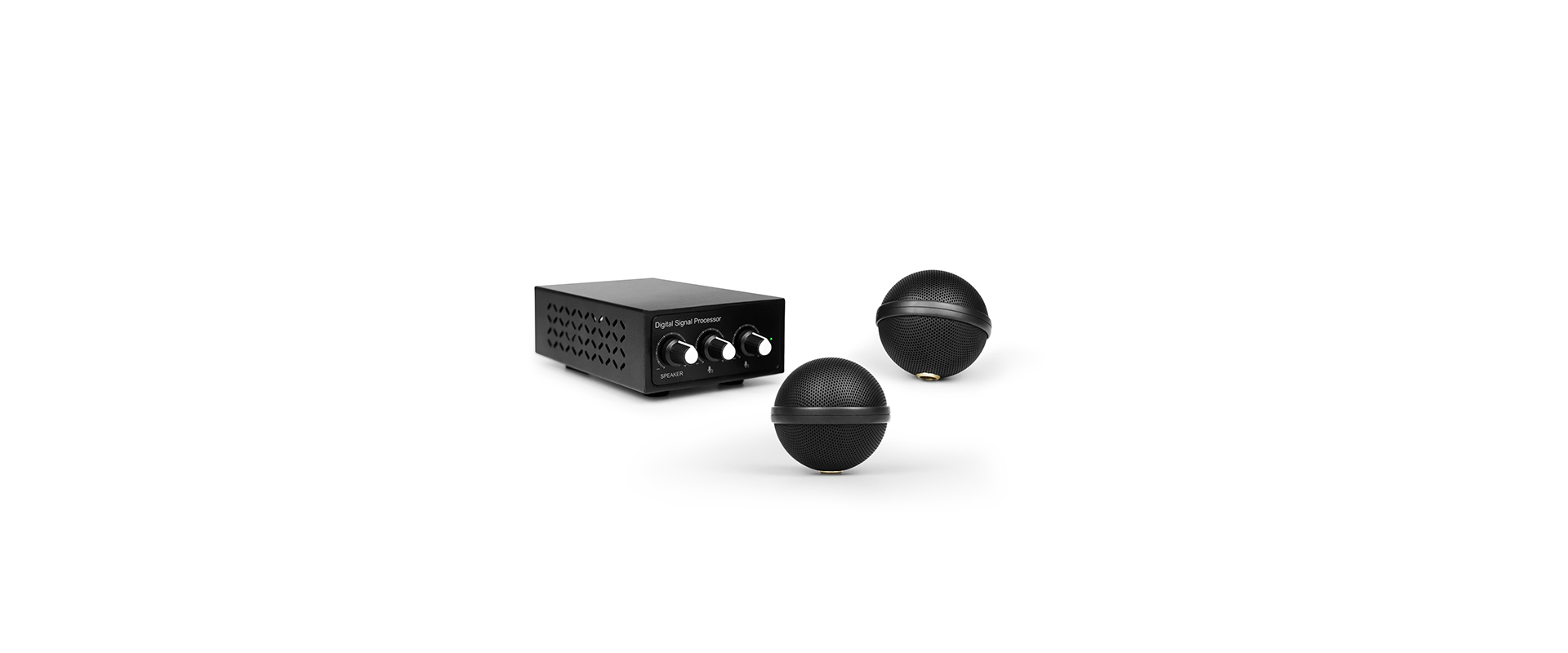

    The Ceiling Mic Pro ASP-C-02 comes with everything you see here: • Digital Signal Processor Unit • Voice Area Ceiling Mics x 2 • Microphone Cables x 2 • Speaker Cable x 1 • 3.5mm Female Audio Connector Cable x 1 • USB Data Cable (Type-B to Type-A) x 1 • DC Power Adapter x 1

Ceiling Mic Pro ASP-C-02-0
Ceiling Mic Pro ASP-C-02-0
Ceiling Mic Pro ASP-C-02-0
Ceiling Mic Pro ASP-C-02-0
Ceiling Mic Pro ASP-C-02-0
Ceiling Mic Pro ASP-C-02
  • Model
  • ASP-C-02
  • Component
  • Digital audio processor
    DSP processing bus structure
    USB Type-B connection
    2 Road 3.81mm phoenix interface
    Input and output single adjustment knob
    Suspended spherical microphones x 2
  • Color
  • Matte black

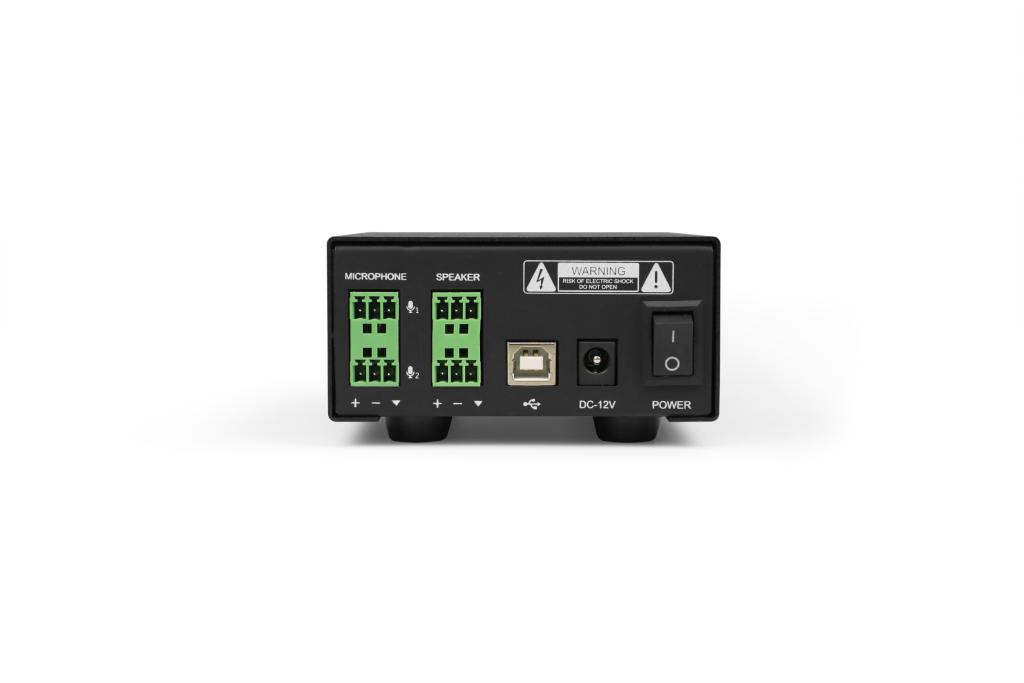

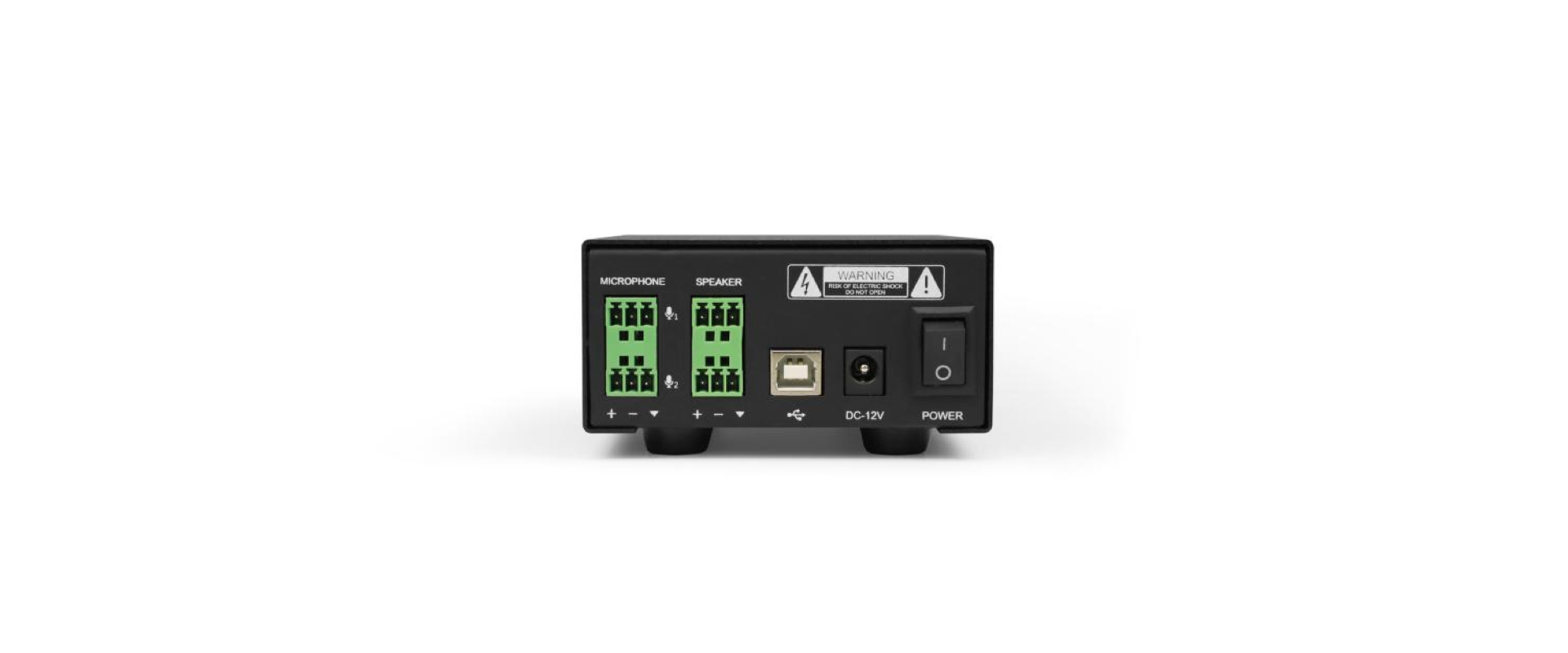

  • Interface
  • USB Type-B interface
    DC 12V power
    2 Road 3.81mm phoenix interface
  • Power supply
  • Power adapter
    Input:100-240V, 0.5A,50/60Hz
    Output:DC 12V, 2A
  • Computer system requirements
  • Windows 7 / Windows 10 /Windows XP,MacOS
  • Suspended spherical microphones
  • Pick up radius: 10m Max
    ·Frequency response: 50hz-20khz
    Sensitivity :-47 plus or minus 3dB
    SNR: 75dB
  • Product execution standard
  • YD/T 993-1998
    GB/T 9254-2008
    GB 4843.1-2011
  • Certification
  • CE; FCC; CCC
  • Audio processor
  • Frequency response (20hz-20khz@+4dBu)
    Microphone channel: +0/ -2db
    Line input channel: +0/-0.5dB
    Working normal:red, green alternatively lighting on
  • Audio features
  • Adaptive echo cancellation
    Adaptive noise suppression
    Intelligent remix
  • Warranty
  • 3 year warranty
    1 year battery guarantee
