Blade VS+

Features and scenarios

  • 1080p @ 60 fps

    The Blade VS+ runs video at up to 1080p Full HD at 60 frames per second. This smooth, high resolution video can run through HDMI and USB-C (USB2.0) connections, giving your livestreaming or recorded video excellent definition and superb image quality.

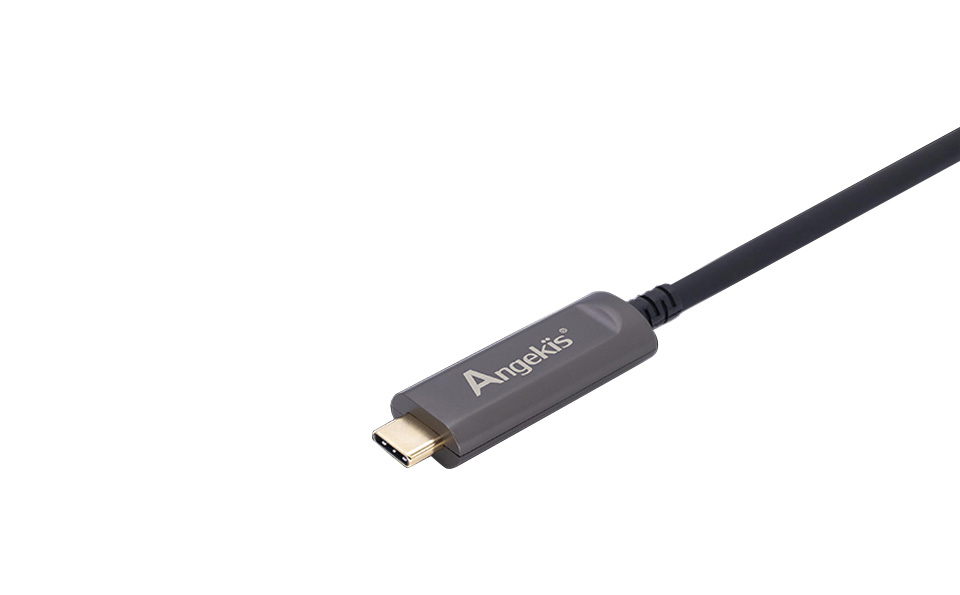

  • Power over USB-C

    The Blade VS+ now comes with a USB-C port (running USB 2.0) through which you can run power, video, and control. One plug to rule them all.

  • 10x Optical + 12x Digital Zoom

    With a 10x Optical and 12x Digital zoom, you can get right into the details, whether it be zooming into a presenter or an equation on a classroom whiteboard. Lossless zoom ensures no drop in image quality, meaning you'll have no problem telling if that's a Δ or an α.

  • Connectivity

    The Blade VS+ gives you options. Run Full HD Video simultaneously out through the HDMI and USB-C ports, enjoy Power and Control over USB, and have the versatility you need in your integrations.

Blade VS+-0
Blade VS+-0
Blade VS+-0
Blade VS+-0
Blade VS+
  • Model
  • U2-10FHD3
  • Video Format
  • HDMI: 1920*1080P60/59.94/50/30/29.97/25/24; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
    USB-C:
    MJPG: 1920*1080P60; 1280*960P60; 1280*720P60; 1024*768P60; 800*600P60; 640*480P30; 320*240P60
    YUY2: :640*480P30;320*240P30
  • Zoom
  • 10x Optical zoom + 12x Digital zoom
  • Presets
  • 128 Presets: Visca over USB, RS232
    10 Presets: IR Remote Control (included)
  • Resolution
  • Full HD resolution at 60fps via USB-C or HDMI
  • FOV
  • 62.5°
  • Motorized Pan and Tilt
  • Pan: -170°~+170°; Tilt: 90°(up)~30°(down), Rotation Speed: Pan -0°~120°/s, Tilt -0°~80°/s, 10 camera pre-sets via RF Remote Control
  • Control
  • RS232, RS485 (Serial VISCA, Pelco-P/D), USB-C (Compatible with USB2.0 (UVC1.1)), Zoom Room Controller supported, Angekis NECC on screen app control, 10 presets via RF Remote Control, 128 presets via RS232 Joystick
  • Video outputs
  • USB 2.0 (Type-C), HDMI
  • Day/Night Vision Switch
  • Supported
  • Zoom Room remote RF Controller
  • Supported
  • Angekis near end on-screen app control
  • Supported
  • OSD settings menu via Remote
  • Supported
  • Video Mute Control
  • Supported
  • Kensington Lock Hole
  • Supported

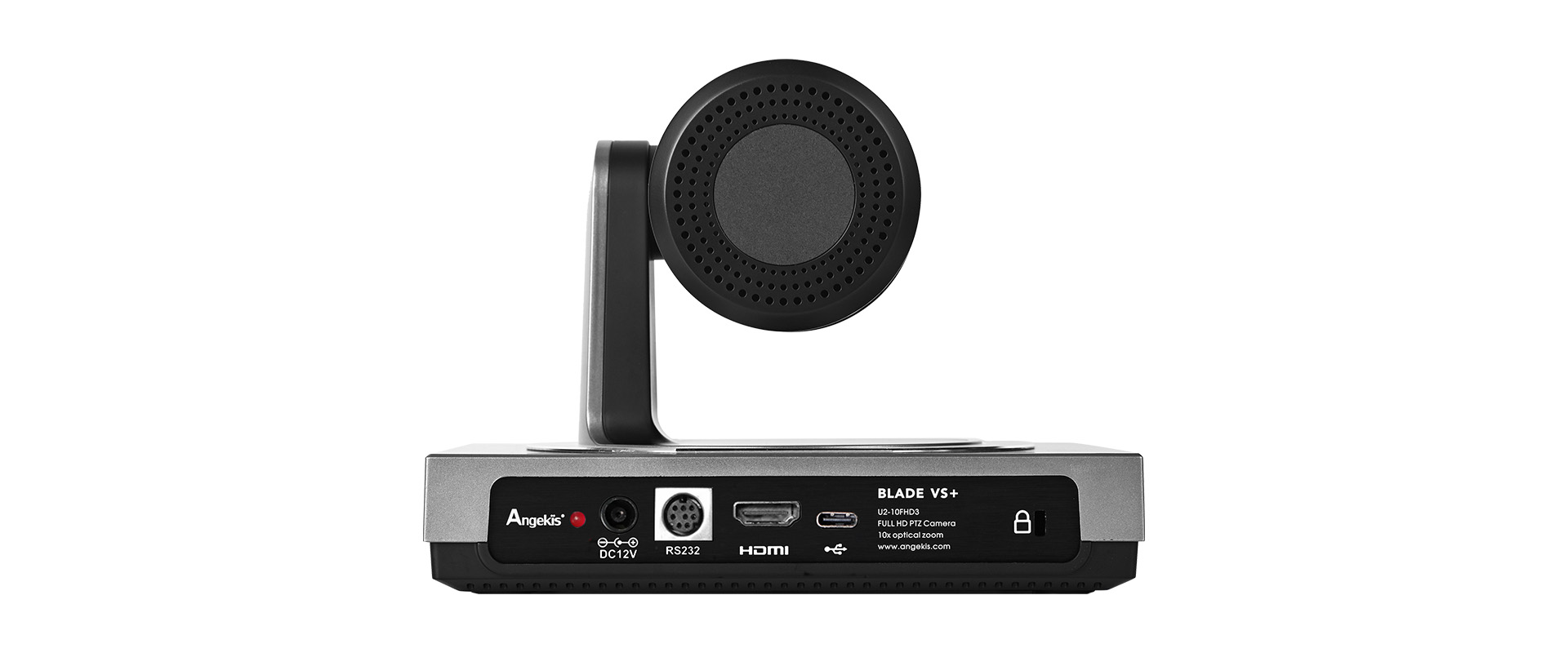

  • Connectivity
  • Power port: HEC3800, RS232 IN (Visca and Pelco), USB-C (USB2.0, HDMI (v1.4))
  • Mount
  • Camera mount included for wall, Reverse mountable, standard tripod screw on the bottom of the unit
  • System Requirements
  • Windows® 7/8/8.1/10, Mac OS® X 10.7 or higher, Google Chrome book version 29.0.1547.70, platform 4319.79.0
  • Environmental Data
  • Working temperature:-10°~50°C
  • Power supply
  • Consumption:12V, 2A;  Max Consumption: 9W
  • Dimensions
  • 200 x 143 x 152mm
  • Net Weight
  • 1.25KG
  • Warranty
  • 3 Years
  • Compatible Applications (Tested and Verified)
  • Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangouts, GoToMeeting, Intel®UniteTM, Microsoft®LyncTM, Skype TM, Skype for Business, V-Cube
  • Sensor
  • 1/2.8 inch, 2.1MP CMOS
