Blade 4K

Features and scenarios

  • 15x Zoom

    5x Optical zoom at 4K, or 15x zoom in lossless HD gets you up close and personal. Even in the largest conference rooms, the Blade 4K's zoom features will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

  • Groundbreaking 4K Optics

    Utilizing advanced sensors and a multi-lens camera setup, the Blade 4K delivers video in crystal clear, ultra high definition 4K resolution.

  • Fit Everyone In

    With a wide-angle 86.5 degree field of view lens, the Blade 4K can cover everyone. Keep your whole team engaged with everyone in the shot.

  • Dynamic Startup

    The default position isn't for everyone. Dynamic startup allows you to change the camera's startup angle, setting the view right where you need it. A perfect solution for lectures.

Blade 4K-0
Blade 4K-0
Blade 4K-0
Blade 4K-0
Blade 4K
  • Video Format
  • MJPG: 3840x2160p @ 30fps, 1920x1080p @ 30fps,1280x720p @ 30fps, 1024x576, 960x540, 800x600, 640x480, 640x360, 512x288;
    YUY2: 1080p @ 30/25fps, 720p @ 30/25fps, 1024x576p @ 30fps, 960x540p @ 30fps, 800x600p @ 30fps, 640x480p @ 30fps, 640x360p @ 30fps, 512x288p @ 30fps
  • Model
  • U3-UFHD36
  • Zoom
  • 5x 4K Zoom over USB 3.0 + 15x HD Zoom over USB 3.0
  • Resolution
  • Up to 4K resolution at 30fps
  • HFOV
  • 86.5°
  • Presets
  • 10 via IR Remote Control (included), 128 over RS232
  • Motorized Pan and Tilt
  • Pan: -150°~+150°; Tilt: 90°(up)~30°(down), Rotation Speed: Pan -0°~120°/s, Tilt -0°~80°/s, 10 camera presets via IR Remote Control
  • Control
  • Zoom Room Controller supported, Visca over RS232, Angekis NECC on-screen app control, 10 via IR Remote Control, 128 via RS232 Joystick
  • Video outputs
  • USB 3.0
  • Day/Night Vision Switch
  • Supported
  • Zoom Room remote RF Controller supported
  • Supported
  • Angekis near end on-screen app control
  • Supported
  • OSD settings menu via Remote
  • Supported
  • Video Mute Control
  • Supported
  • Kensington Lock Hole
  • Supported

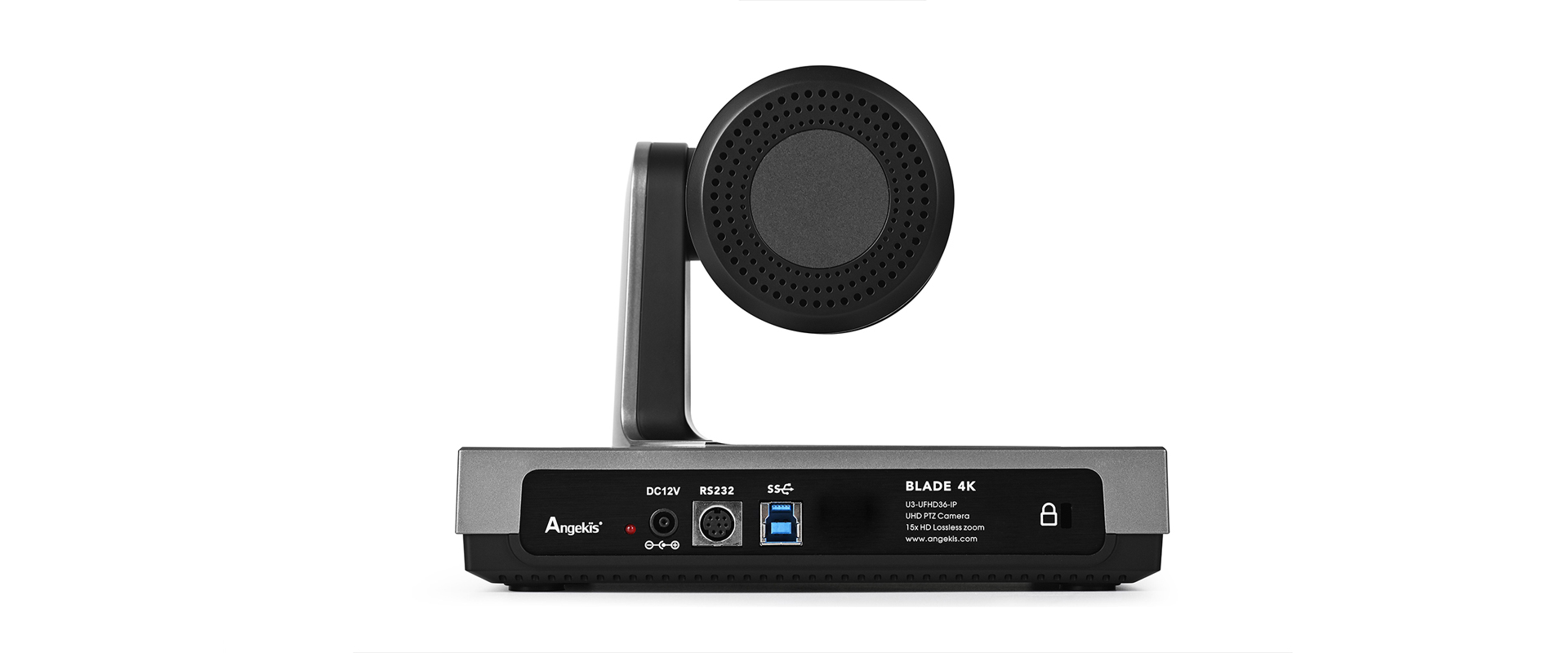

  • Connectivity
  • Power port: HEC3800, VISCA IN RS232, USB 3.0
  • Mount
  • Camera mount included for wall, Reverse mountable, standard tripod screw on the bottom of the unit
  • System Requirements
  • Windows® 7/8/8.1/10, Mac OS® X 10.7 or higher, platform 4319.79.0
  • Environmental Data
  • Working temperature: -5°to 45°, Storage temperature:-10° to 50°
  • Power supply
  • Consumption: 12V, 2A;  Max Consumption: 10W
  • Dimensions
  • 265 x 217 x 216 mm
  • Net Weight
  • 1.25Kg (2.76 Lbs)
  • Warranty
  • 3 Years
  • Compatible Applications
  • Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangouts, GoToMeeting, Intel® UniteTM, Microsoft® LyncTM, Skype TM, Skype for Business, V-Cube
  • Sensor
  • 1/2.8 inch, 8.42MP CMOS
