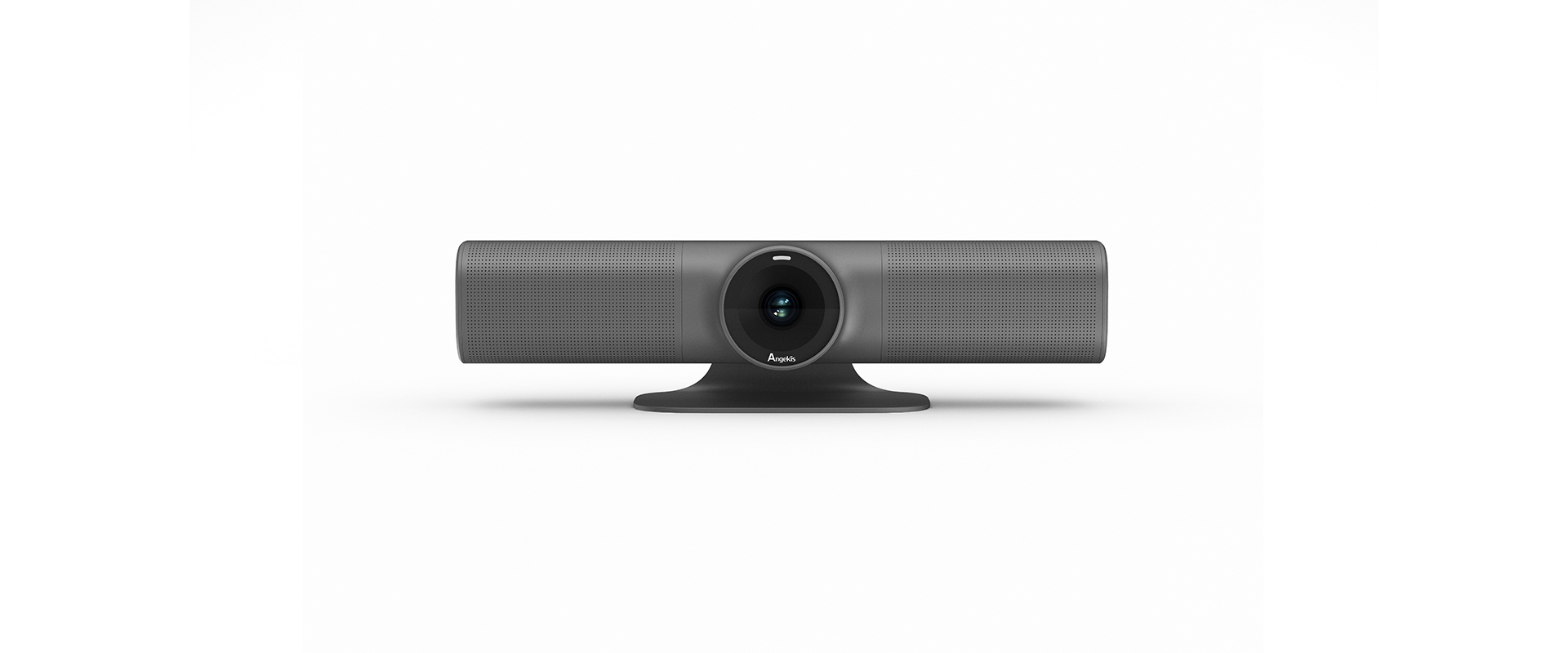

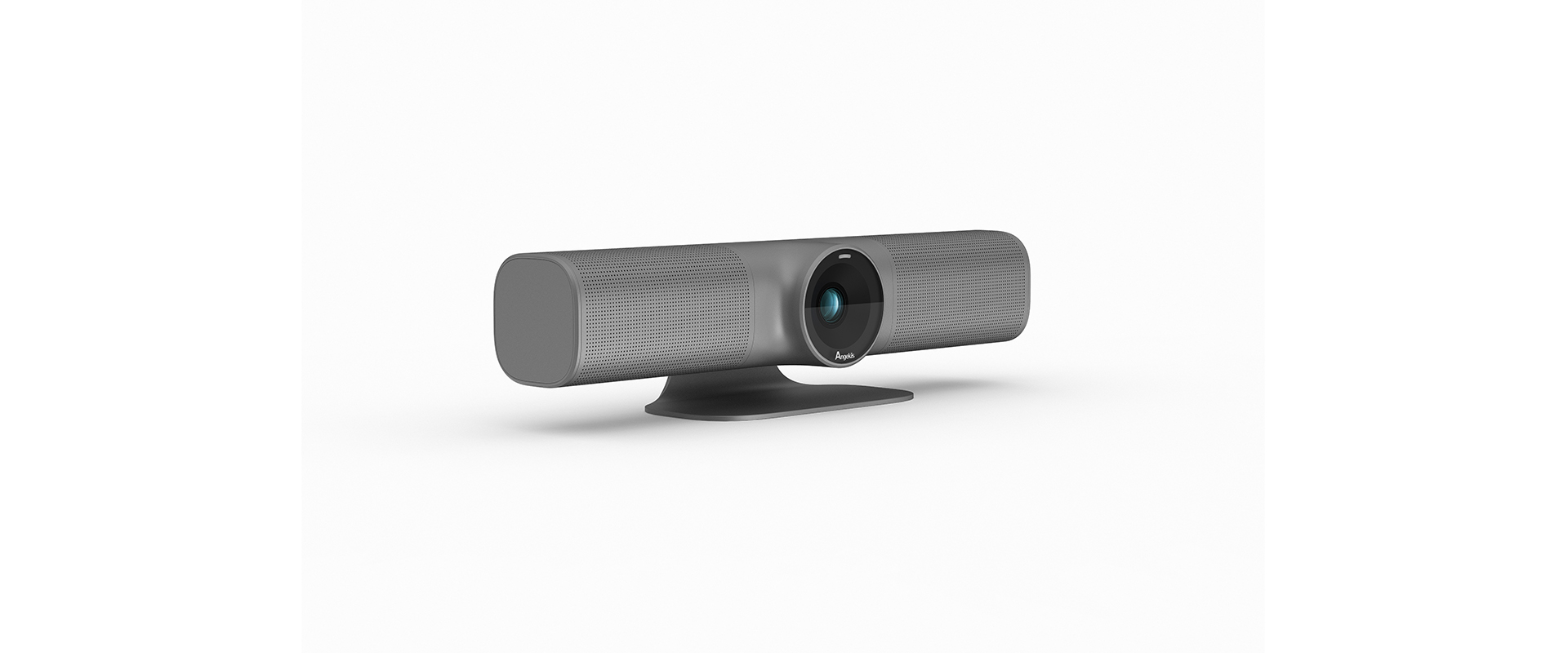

Angekis One Touch

Features and scenarios

  • Group Framing

    Let One Touch do the work with group auto-framing. As people join your meeting the camera will automatically frame them into view!

  • Best in Class Audio

    When we say best in class audio, we mean it. Featuring UHD high fidelity, echo cancellation, dynamic noise reduction, full duplex audio, DSP audio processing, and a 4 x beam forming microphone array, your next in-person meeting will sound dull by comparison.

  • UltraOptix

    Utilizing advanced imaging technology, UltraOptix reduces 3D video noise. The result is a balanced image that renders with unrivalled clarity, sharpness, and definition.

  • Groundbreaking 4K Optics

    Utilizing advanced sensors and a multi-lens camera setup, the One Touch all in one camera delivers crystal clear 4K resolution.

  • Perfect Your Lighting

    Whether you’re having a meeting in a photography studio darkroom, in a Norwegian glasshouse during aurora borealis, or your office manager just installed those super bright halogen bulbs everywhere, the One Touch’s advanced lighting controls can fix it. Correct the exposure, brightness, back lighting and more with the One Touch remote.

Angekis One Touch-0
Angekis One Touch-0
Angekis One Touch-0
Angekis One Touch-0
Angekis One Touch-0
Angekis One Touch
  • Model
  • AOT-01
  • Microphone
  • Full duplex technology
    384ms echo cancellation
    Dynamic noise reduction
    4 x omnidirectional beam forming microphones
    DSP audio processing
    360 degree pickup
    Up to 5 meter pickup range
    Frequency response: 100Hz-24000Hz
    Sensitivity: 22dB@1kHz(0dB=1V/Pa)
    48KHz uplink and 48KHz downlink audio sampling rate
    Microphone mute
  • Includes
  • Video/Audio unit with built in desktop stand. Alternatively can be mounted on the wall or on a stand.
    USB Cable: USB-C
    Power adapter
    RF Remote Control
  • Speaker
  • 3.94 inch anti-magnetic horn
    4Ω8W, 100-20000Hz
    Volume up to 92db
  • Colour
  • Metallic grey
  • Measurements
  • 70.5mm x 70.5mm x 370.7mm
  • System compatibility
  • Windows 7/8/10, Mac OS 10.0 or above, Android 8.1 or above, Linux
  • Power
  • DC 12V/2A @ -100-240 VAC, 50/60 Hz -POE
  • Lens
  • Fixed focus, 120 Degree HFOV
  • Image sensor
  • 8.42MP UHD CMOS sensor
  • Outputs (USB-C)
  • MJPG@30FPS at 2160P
    YUY2 640@30FPS
    H.264@30FPS at 2160P
    H.265@30FPS at 2160P
  • f-number
  • F1.8
  • Functions
  • Video & Mic Mute
    Autoframing On/Off
  • Presets
  • 2x presets via remote or 10x OS app control
  • Controls
  • Remote, UVC FECC, Desktop (video only)
  • LED indicator
  • White: Working, Red: Standby
  • Certifications
  • FCC, CE, RoHS
  • Recommended conditions
  • Temperature: 0°-40°
    Humidity: 15-85% condensation free
    Noise level:<48db
    Storage temperature: -40°-70°
    Reverberation time:<0.5 seconds
  • Warranty
  • 3 year warranty. During the first year Angekis will swap out for a new unit and cover all shipping costs. During years 2 & 3 Angekis will repair the unit and the user will pay for 2-way shipping. Extended warranty available.

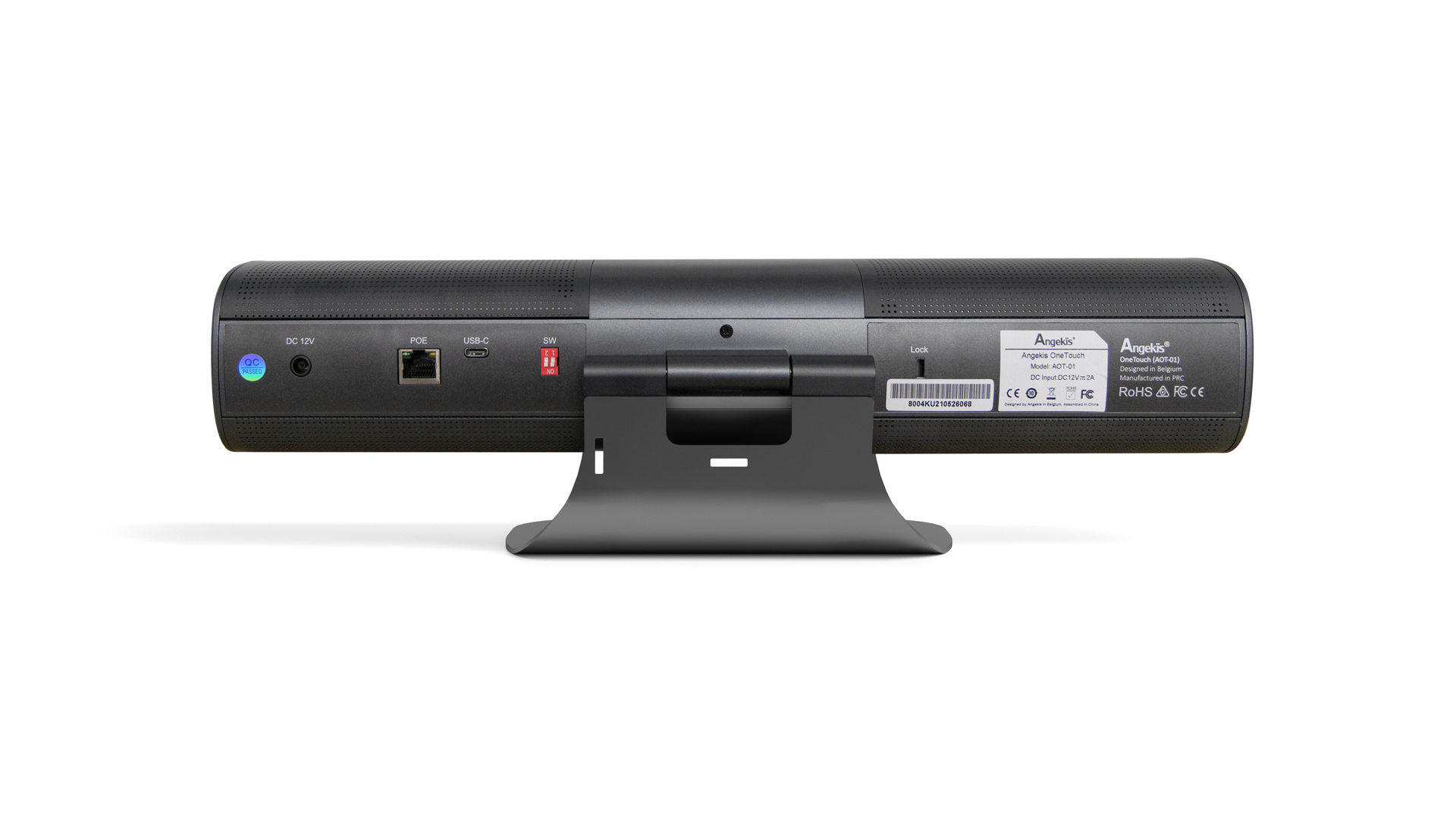

  • Interface
  • USB-C, RJ45 (POE only), Kensington lock, DC12V, DIP
